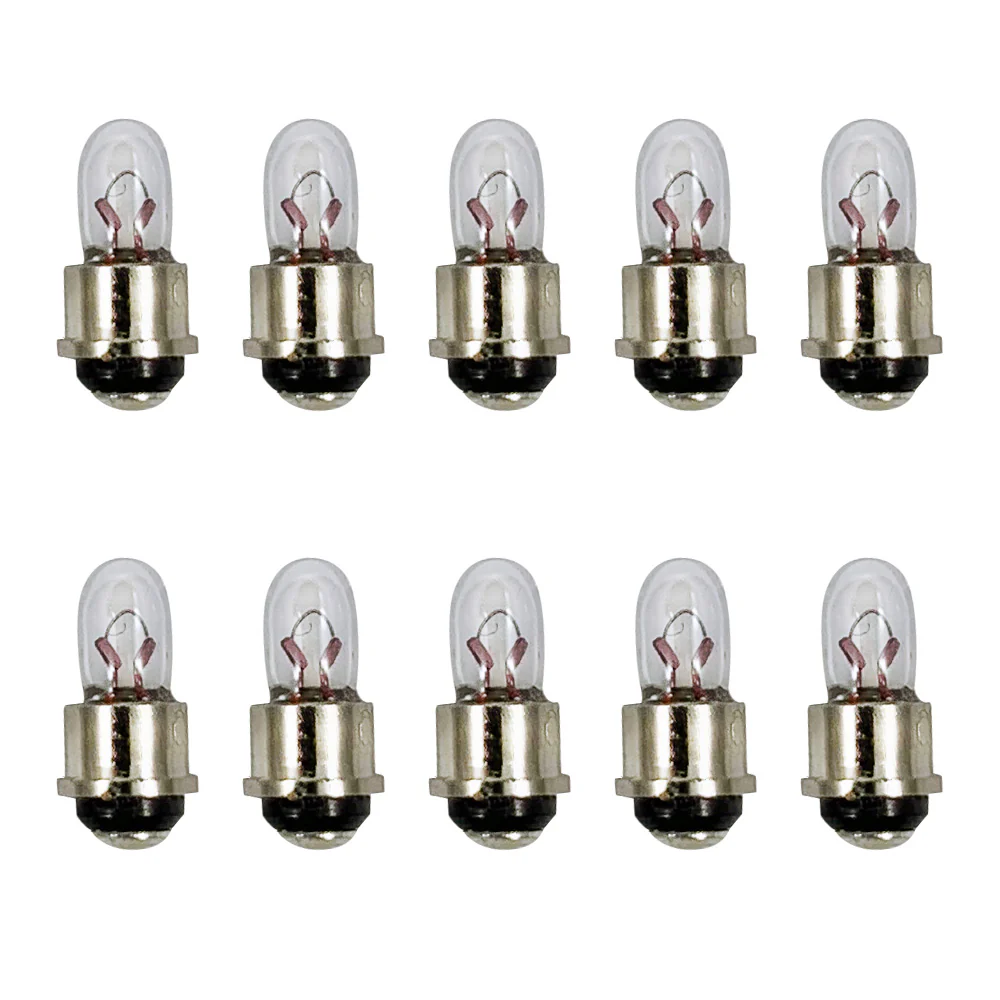

10PK - GE 685 - 28706 5w 5v T1 C-2R Sx4s4 Base Low Voltage Automotive Bulb

10 PK - GE 685 - 28706 5v T1 Low Voltage Miniature 40000 hrs Bulb Base Sub-Midget Flanged Automotive Bulb

Features:
- Base Type: Pin/Plug-In, Base Description: Sx4s4 (Sub-Midget Flanged)
- Filament: C-2R, Base: Sx4s4
- Rated Life: 40000 hrs, Atmosphere: Vacuum
- Primary Application: Automotive Low Voltage, Bulb Shape: T1
- Voltage: 5, Wattage: 5

Part Numbers:
- Eiko 40872
- WL685
- GE685
- JKL685
- S685
- GE 28706
- MS-24515-685
- NSN 6240-00-752-2581
- 70786214
- 1337871
- UPC 0043168287067
- GTIN 10043168287064
- OL-685
- M63638-1
- SMF685

GENERAL CHARACTERISTICS
Base Type	Pin/Plug-In
Base Description	Sx4s4 (Sub-Midget Flanged)
Filament	C-2R
Rated Life	40000 hrs
Atmosphere	Vacuum
Primary Application	Automotive Low Voltage
Base	Sx4s4
Bulb Shape	T1
ELECTRICAL CHARACTERISTICS
Voltage	5
Wattage	5
PHOTOMETRIC CHARACTERISTICS
Mean Spherical Candlepower	0.050 cd
DIMENSIONS
Diameter	0.12 in
Light Center Length (LCL)	0.19 in
MOL	0.38 in
PACKAGING INFORMATION
Package Quantity	1000
UPC	043168287067
Length	5.68 in
Width	4.0 in
Gross Weight	0.08 Ib

Manual:

GE 28706 Data Sheet
