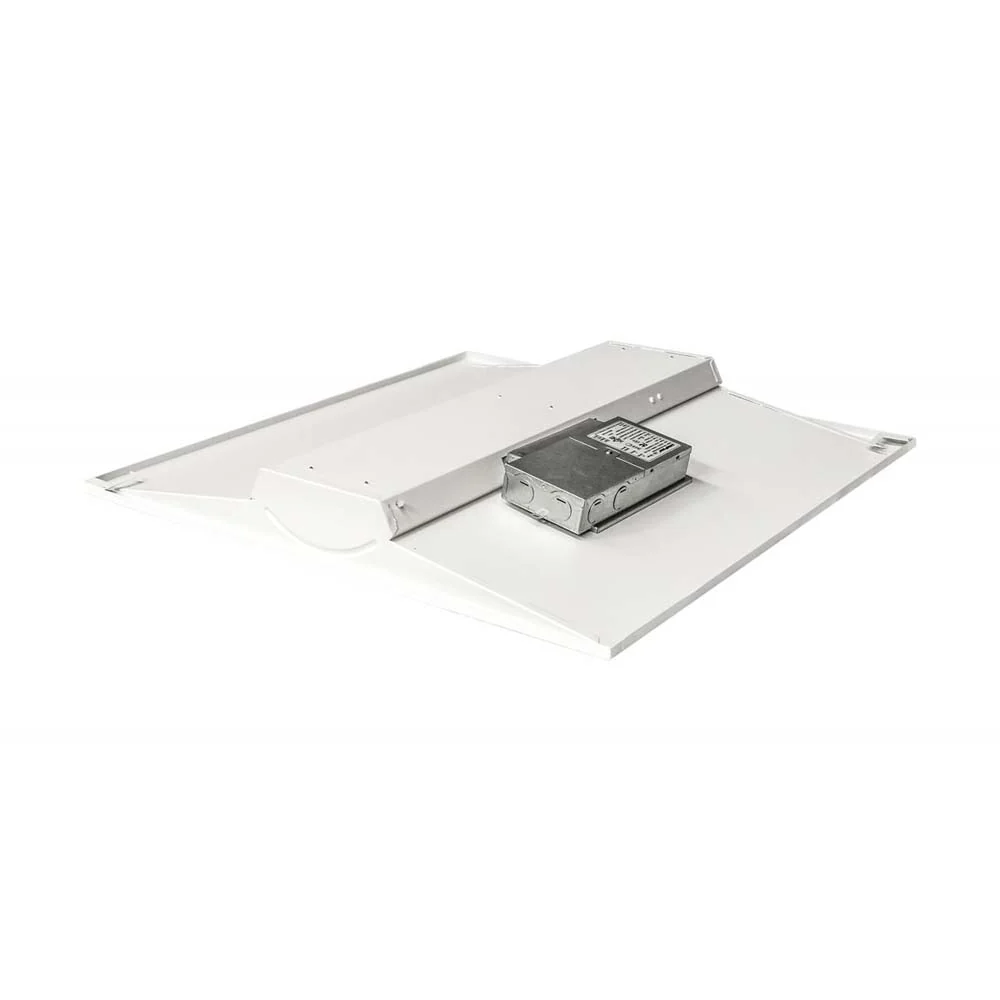

2X2 Single Basket LED Troffer Fixture CCT Tunable Lumens Tunable 100-277V

A two foot by two foot single basket troffer which feature selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and the troffer drops into a T-bar grid.

Features:
- Volumetric design
- Watts: 30W - 35W - 40W
- Lumens: 3300L - 4400L
- Color temperature: 3500K/4000K/5000K
- Operating temperature: -20C (-4F) to a maximum of 40C (104F)

General
Finish	White
Style	Utility
Height (in.)	2.61
Width (in.)	23.74
Length (in.)	23.74
Specifications
Base	Integrated
Bulb Type	LED
Max Wattage	30W/35W/40W
Voltage	100V-277V
Bulb Included	Integrated
Weight (lb.)	6.06
Fixture Type	Troffer
Fixture Material	Steel
Dimensions
Height (in.)	2.61
Width (in.)	23.74
Length (in.)	23.74
Compliance
Safety Listing	cULus - Listed
Location Rating	Damp
Energy Star	No
CA T20 / T24 Rationale	T20 Exempt - Fixtures Not Regulated
California Status	Lawful for sale in California
California Prop 65	Lead
RoHS Compliant	Yes
FCC Compliant	Yes
Additional Information
Warranty	5 Year Limited

Manual:

65-690 Data Sheet
65-690 Installation Manual
