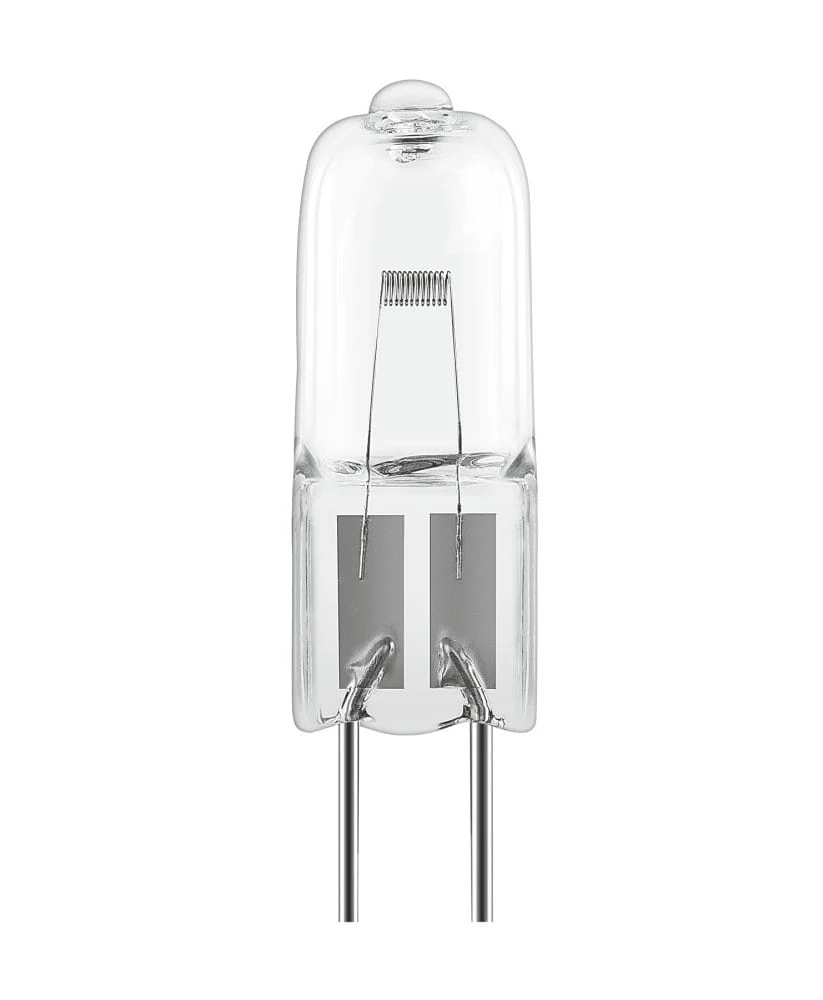

30W 12V G6.35 - 64261 HLX Replacement Bulb

30W 12V G6.35 - 64261 HLX Replacement Bulb
Bulbamerica Halogen lamps offer brilliant light, high light output, a constant color temperature and excellent color rendering throughout their lives.

The Bulbamerica are easy to use, dimmable and do not contain any mercury. This makes them not only extremely powerful but also extremely eco-friendly.

Cross Reference:
- Osram 54247 64261

Applications:
- Projection

Features
- Previous NAED Code 54023
- Xenon instead of krypton as the filler gas
- Compared to standard lamps up to 10 % higher luminous efficacy higher with same power consumption

Abbreviation Name	BA64261
Application	Projector
Average Rated Life (hr)	50
Base	G6.35 Bipin
Bulb	T3.25
Class	C (gas)
Color Rendering Index (CRI)	100
Diameter d (in)	0.472
Diameter d (mm)	12
Distance a (in)	1.17
Distance a (mm)	30
Filament Dimensions Length (in)	0.051
Filament Dimensions Length (mm)	1.3
Filament Dimensions Width (in)	0.101
Filament Dimensions Width (mm)	2.6
Lamp Finish	Clear
Length l (in)	1.716
Length l (mm)	44
LIF Code	M/130
Light Center Length - LCL (in)	1.17
Light Center Length - LCL (mm)	30
Luminous Flux (lm)	750
Maximum Overall Length - MOL (in)	1.716
Maximum Overall Length - MOL (mm)	44
Nominal Voltage (V)	12
Nominal Wattage (W)	30
Operating Position	Any
Reflector Coating	12
Type of Current	AC
