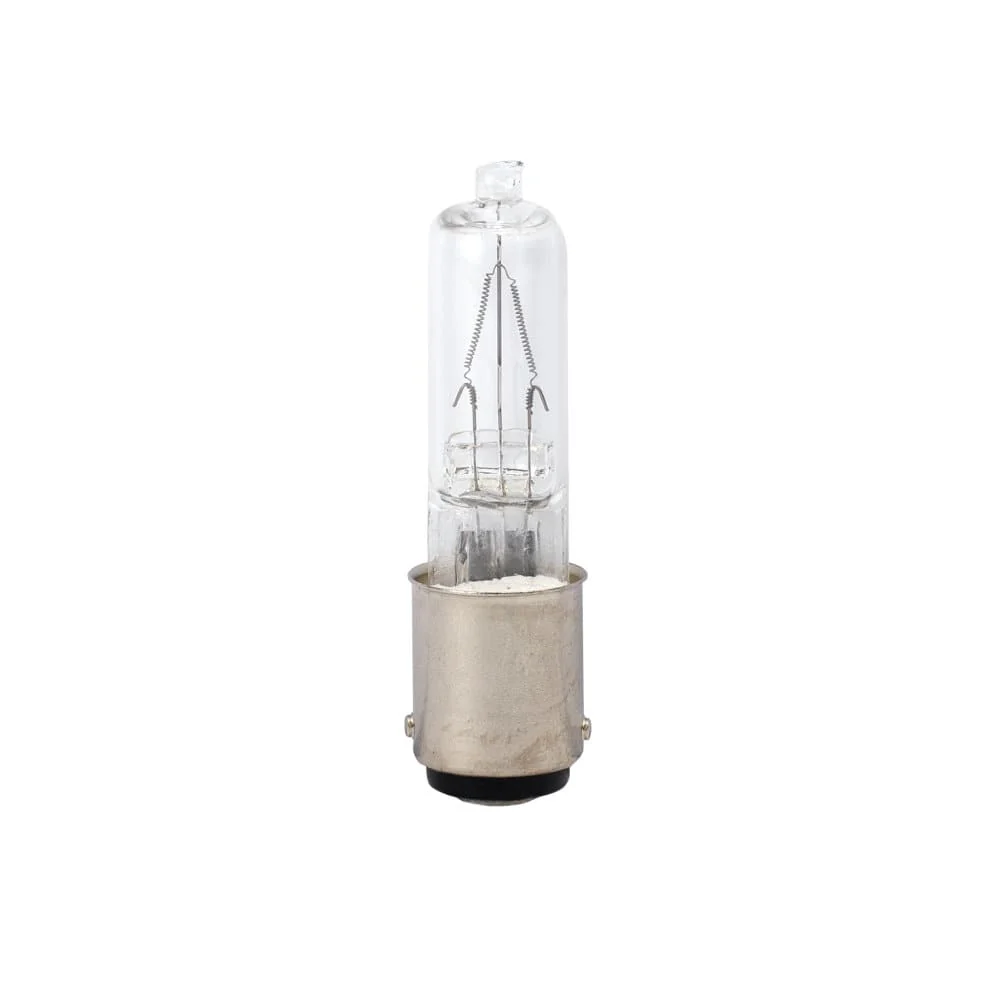

CAX 50W 120V BA15d Replacement Halogen Bulb

CAX 50W 120V BA15d Replacement Halogen Bulb
Bulbamerica 50 watts 120 volts BA15d Double Contact Bayonet base, a rated life of 250 hours, T4 Halogen Lamp.

Cross Reference:
- Osram 58831 CAX

Applications:
- Projector
- Microfilm
- Microscope
- Studio Applications.

Abbreviation Name	CAX
ANSI Code	CAX
Application	Projector, Microfilm, Microscope, Studio
Average Rated Life (hr)	250
Base	BA15d Double Contact Bayonet
Bulb	T4
Class	C (gas)
Color Rendering Index (CRI)	100
Color Temperature (K)	3000
Diameter d (in)	0.5
Diameter d (mm)	12.7
Distance a (in)	1.361
Distance a (mm)	34.9
Filament	CC-2V
Lamp Finish	Clear
Length l (in)	2.414
Length l (mm)	61.9
Length l max. (in)	2.414
Length l max. (mm)	61.9
Light Center Length - LCL (in)	1.361
Light Center Length - LCL (mm)	34.9
Luminous Flux (lm)	750
Maximum Overall Length - MOL (in)	2.414
Maximum Overall Length - MOL (mm)	61.9
Nominal Voltage (V)	120
Nominal Wattage (W)	50
Operating Position	Any
Type of Current	AC
