Current 4-in. Square LED Surface Mount 3500k 80CRI Remote J-Box Mount

Prescolite LBSE-4SQD-RM-35K8-WH 4 inch Square LED Surface Mount Downlight Module, 10.1 Watt 831 Lumens (65w incandescent equivalent), Wet Location, 120V/277V, 3500K Color Temperature, 80 CRI, White Color Finish
Current Prescolite LiteBox Edge-Lit is a low-profile surface-mount downlight family that affordably combines LED edge-lit technology and contemporary appearance with ease of installation and functional versatility.

FEATURES:
- Shape: Square, 0.5inch Low surface profile

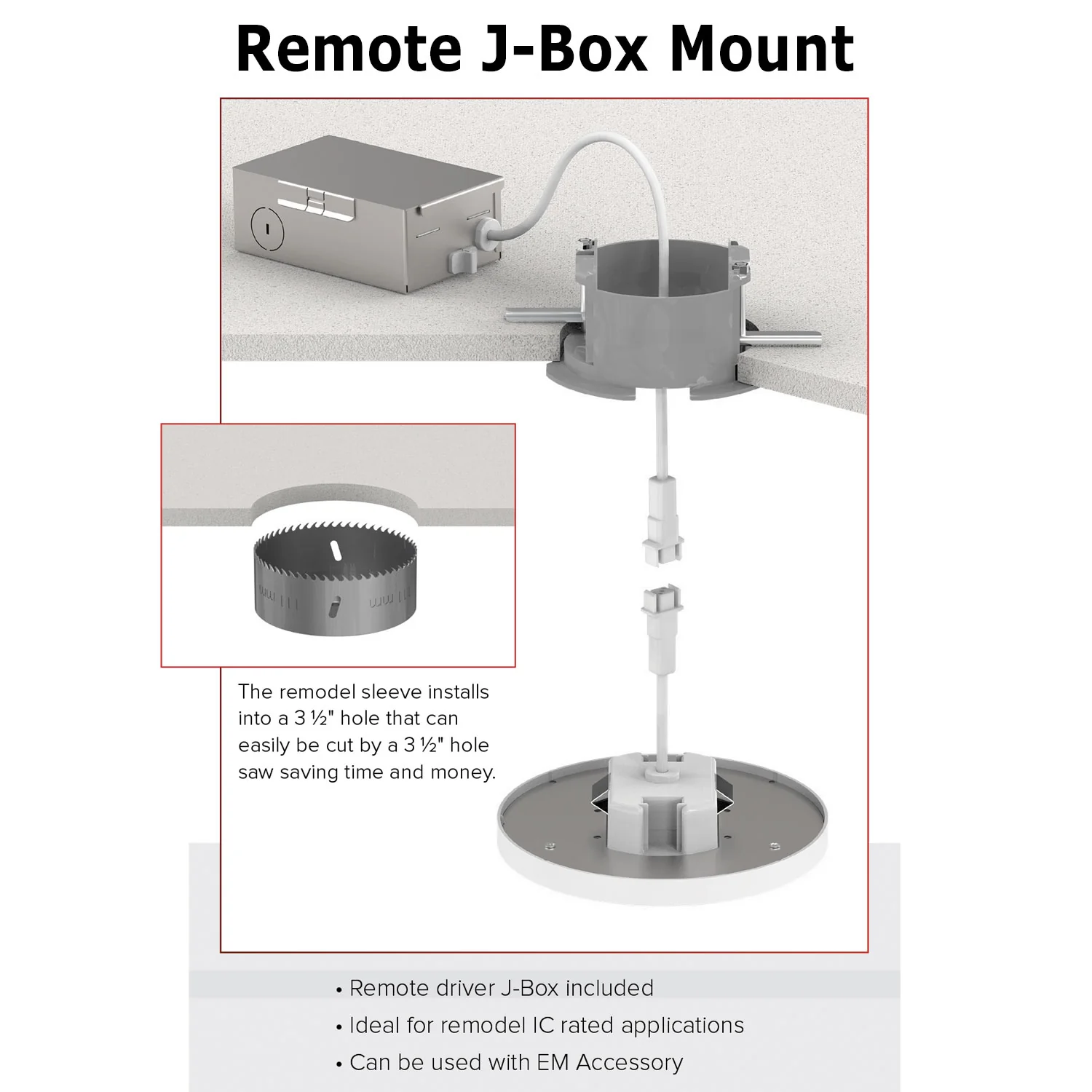

- Remote Mount uses a convenient 3 1/2" sleeve that can be installed into any space using a standard 3 1/2" hole saw
- Quick snap installation with no housing required
- Ideal for remodel IC-rated applications
- Eliminates the need for a recessed housing, ideal for areas with limited plenum space
- Color Temperature 3500K
- Universal 120-277V, ideal for home and commercial applications
- TRIAC/ELC - Flicker-free dimming with 120-277V 0-10V Dim to Off or 120V Triac or ELV phase cut to 5%
- EMI: Meets Class A (<24dba) noise rating, FCC CFR 47 Part 15 Class B, ≥0.9 Power Factor, <20% THD

OPTICS
- Utilizes the latest Edge-Lit LED technology
- Integral diffuse polycarbonate lens provides uniform light distribution
- Light distribution is free of distracting bright spots
- Visually comfortable with low glare

CERTIFICATIONS
- cETLus listed to UL1598
- Can be used in direct contact with insulation (IC Rated)
- Suitable for wet locations, covered ceiling
- Suitable for use in clothes closets when installed in accordance to N.E.C. 410.16
- ENERGY STAR certified
- Meets CA Title 24 High Efficacy (JA8 2019) requirements

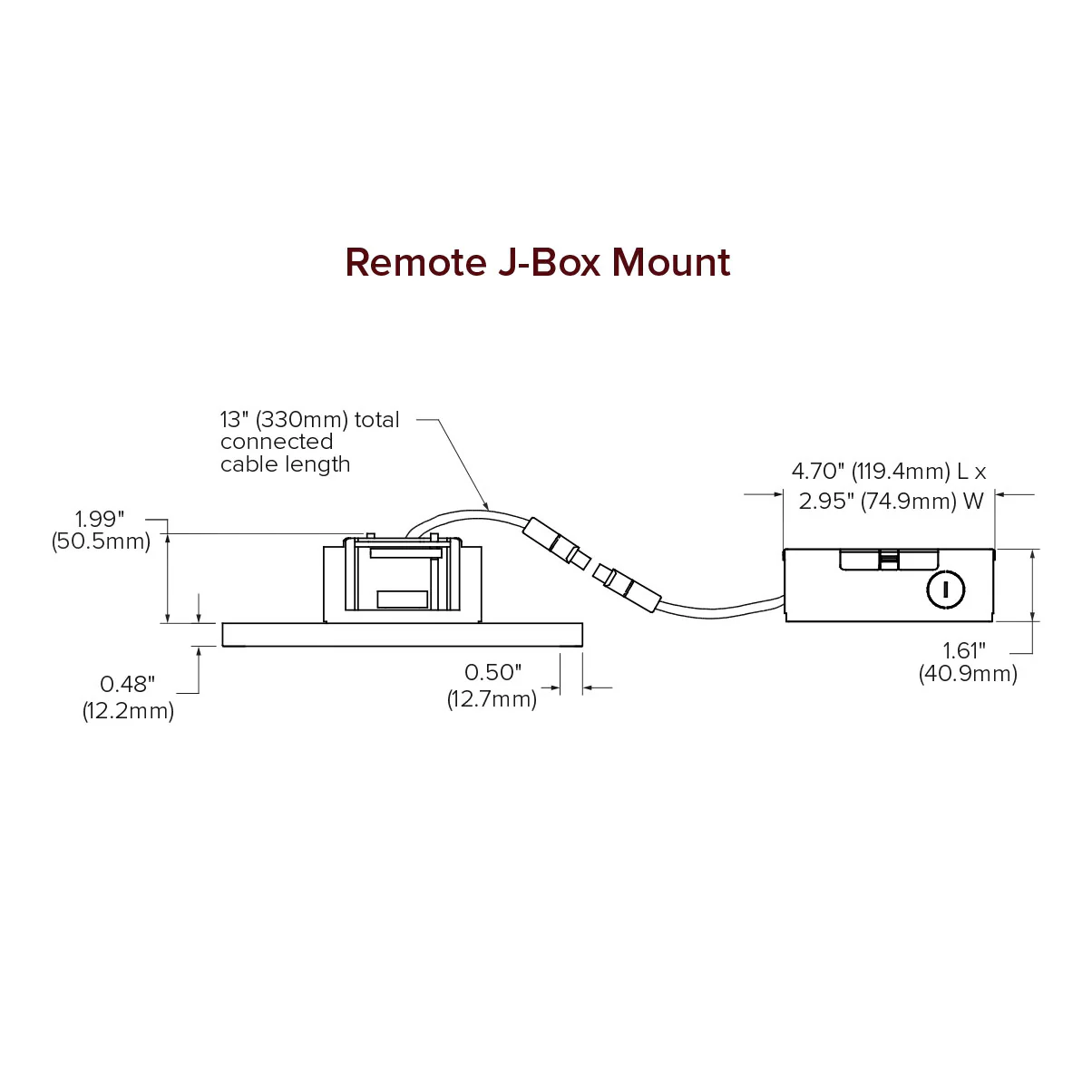

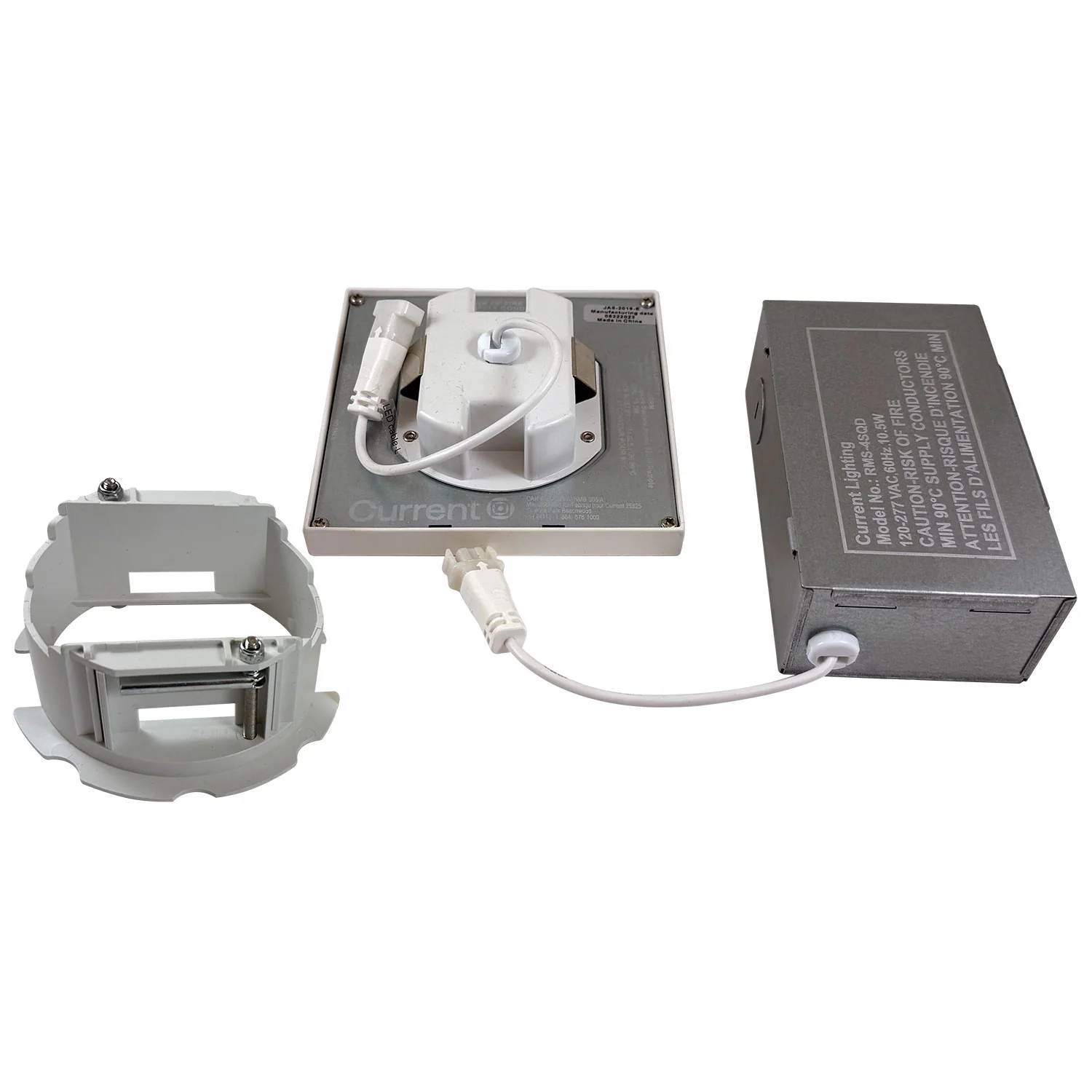

Fixtures Type	Remote J-Box Mount
Size	4-in
Volt	120-277
Watts	10.1w
Finish	White
Shape	Square
Base	Integrated
Color	Neutral White
Color Temp	3500k
Lumens	813L
Rated Life	54,000 hrs
CRI	80
Energy Star	Yes
Warranty	5 Year Limited

Manual:

LBSE-4SQD-RM-35K8-WH Brochure Manual
