Current 4-in Square Low Profile Surface Mount 3500K 80CRI Direct J-Box Mount
Description
Prescolite LBSES-4SQD-35K8-WH 4-inch Round LED Surface Mount Downlight Module, 10.5 Watt 750 Lumens (65w incandescent equivalent), Wet Location, 120V/277V, Switchable Color Temperature, 80 CRI, White Color Finish Current Prescolite LiteBox Edge-Lit is a low-profile surface-mount downlight family that affordably combines LED edge-lit technology and contemporary appearance with ease of installation and functional versatility. The LiteBox Edge-Lit (LBSES) can be field configured to 3500K color temp. This allows flexibility during and after initial installation. The LBSES has enhanced color rendering with 80 CRI and is Title 24 JA8 compliant.

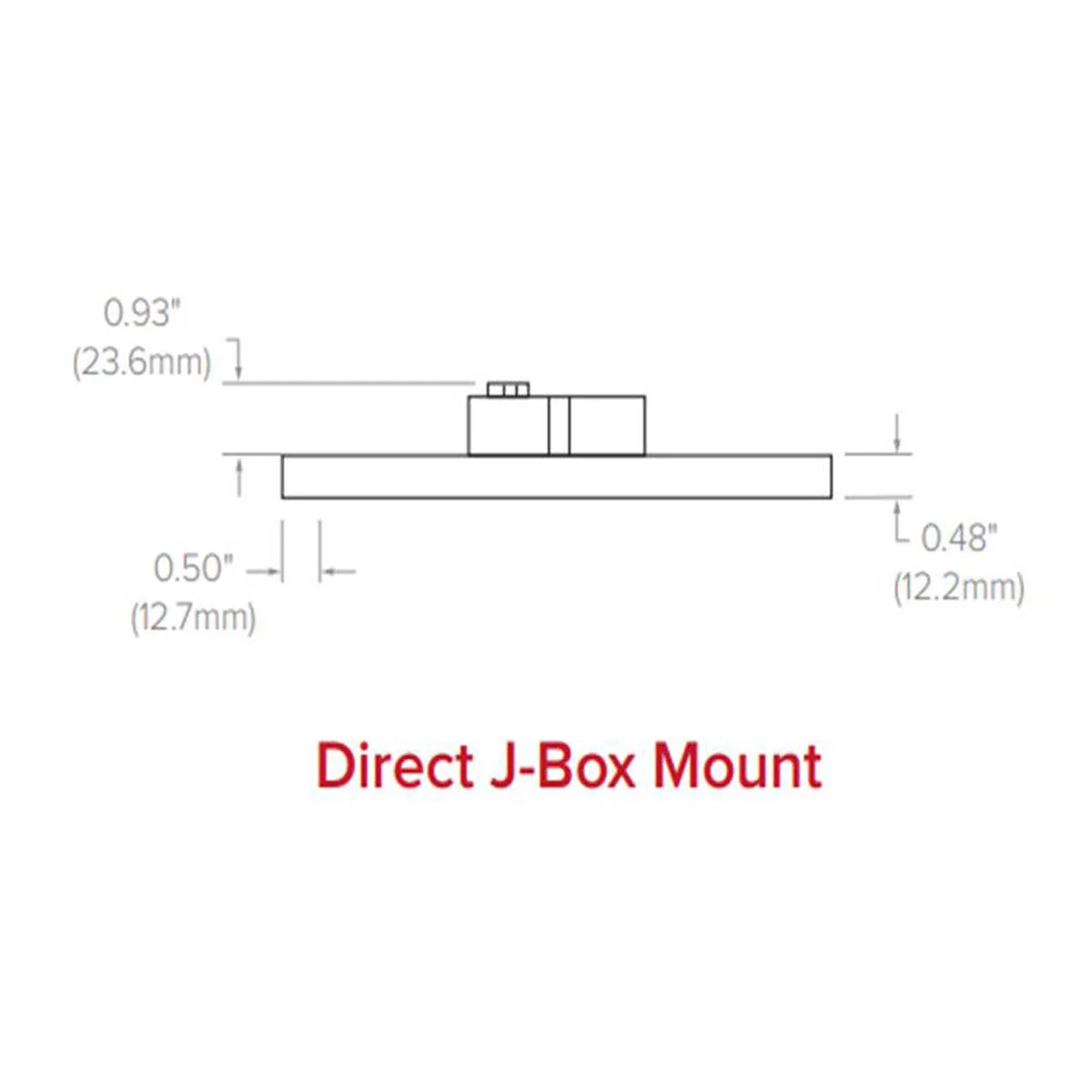

FEATURES:- Shape: Sqaure, with 0.5inch Low surface profile

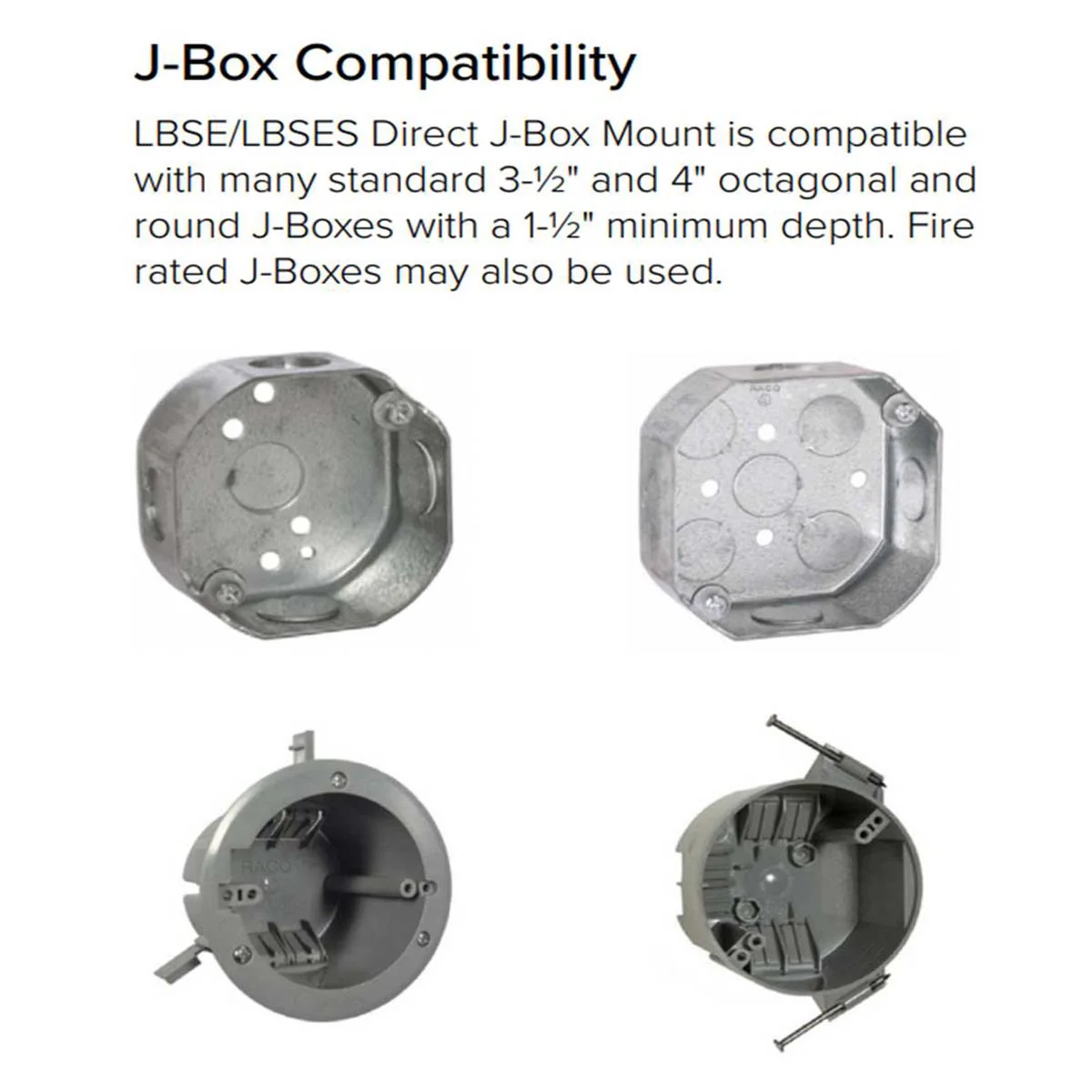

- No Housing required - Fits most standard 3 1/2" or 4" octagonal and round J-Boxes

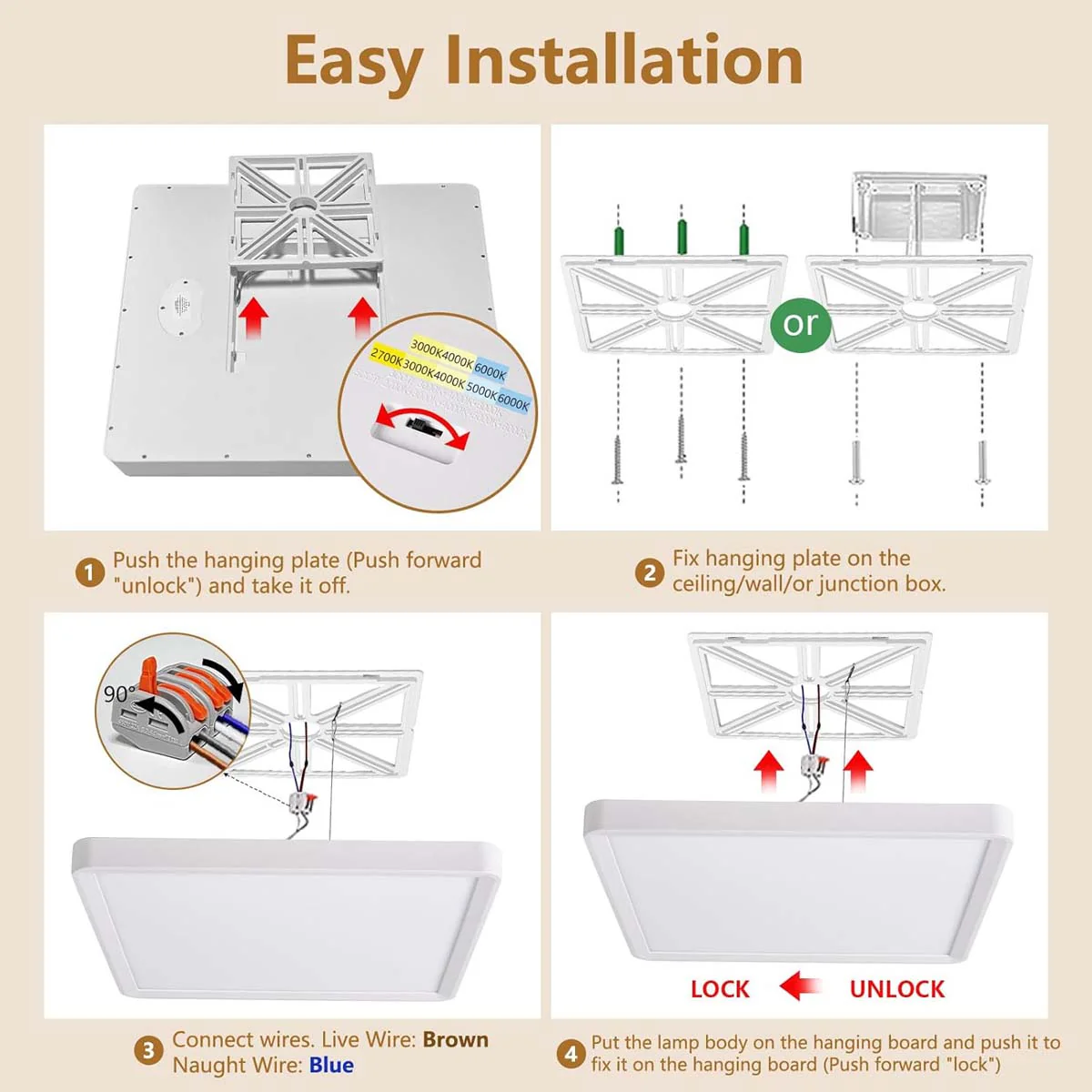

- Direct Mount integral driver uses a quick snap mounting plate that can be installed on common J-Boxes
- Can be used with Fire Rated J-Boxes
- IC rated for direct contact with insulation
- Color Temp: 3500k, 80CRI
- Universal Voltage 120-277v
- Dimmable with 0-10v (Dim-Off) or Triac/ELV (120v) to 5%
- Rated Life: 50,000 hrs (L70)
- Suitable for closet space per NEC 410.16
- Warranty: 5 Year Limited
OPTICS:
- Utilizes the latest Edge-Lit LED technology
- Integral diffuse polycarbonate lens provides uniform light distribution
- Light distribution is free of distracting bright spots
- Visually comfortable with low glare
CERTIFICATIONS:
- cETLus listed to UL1598
- Can be used in direct contact with insulation (IC Rated)
- Suitable for wet locations, covered ceiling
- Suitable for use in clothes closets when installed in accordance to N.E.C. 410.16
- ENERGY STAR certified
- Meets CA Title 24 High Efficacy (JA8 2019) requirements
Specs
| Fixtures Type | Surface Mount |
| Size | 4-in |
| Volt | 120-277 |
| Watts | 10.1w |
| Finish | White |
| Shape | Square |
| Base | Integrated |
| Color | Neutral White |
| Color Temp | 3500k |
| Lumens | 1770L |
| Rated Life | 50,000 hrs |
| CRI | 80 |
| Energy Star | Yes |
| Warranty | 5 Year Limited |
