Current 4-in. Round LED Surface Mount CCT Select 90CRI Remote J-Box Mount

Prescolite LBSES-4RD-CS9-WH 4 inch Round LED Surface Mount Downlight Module, 10Watt 757 Lumens (65w incandescent equivalent), Wet Location, 120V/277V, Switchable Color Temperature, 90 CRI, White Color Finish
Current Prescolite LiteBox Edge-Lit is a low-profile surface-mount downlight family that affordably combines LED edge-lit technology and contemporary appearance with ease of installation and functional versatility.
The LiteBox Edge-Lit Switchable CCT (LBSES) can be field configured to 27K, 30K, 35K, or 40K with a simple switch. This allows flexibility during and after initial installation. The LBSES has enhanced color rendering with 90 CRI and is Title 24 JA8 compliant.

Features:
- Shape: Round, with 0.5inch Low surface profile

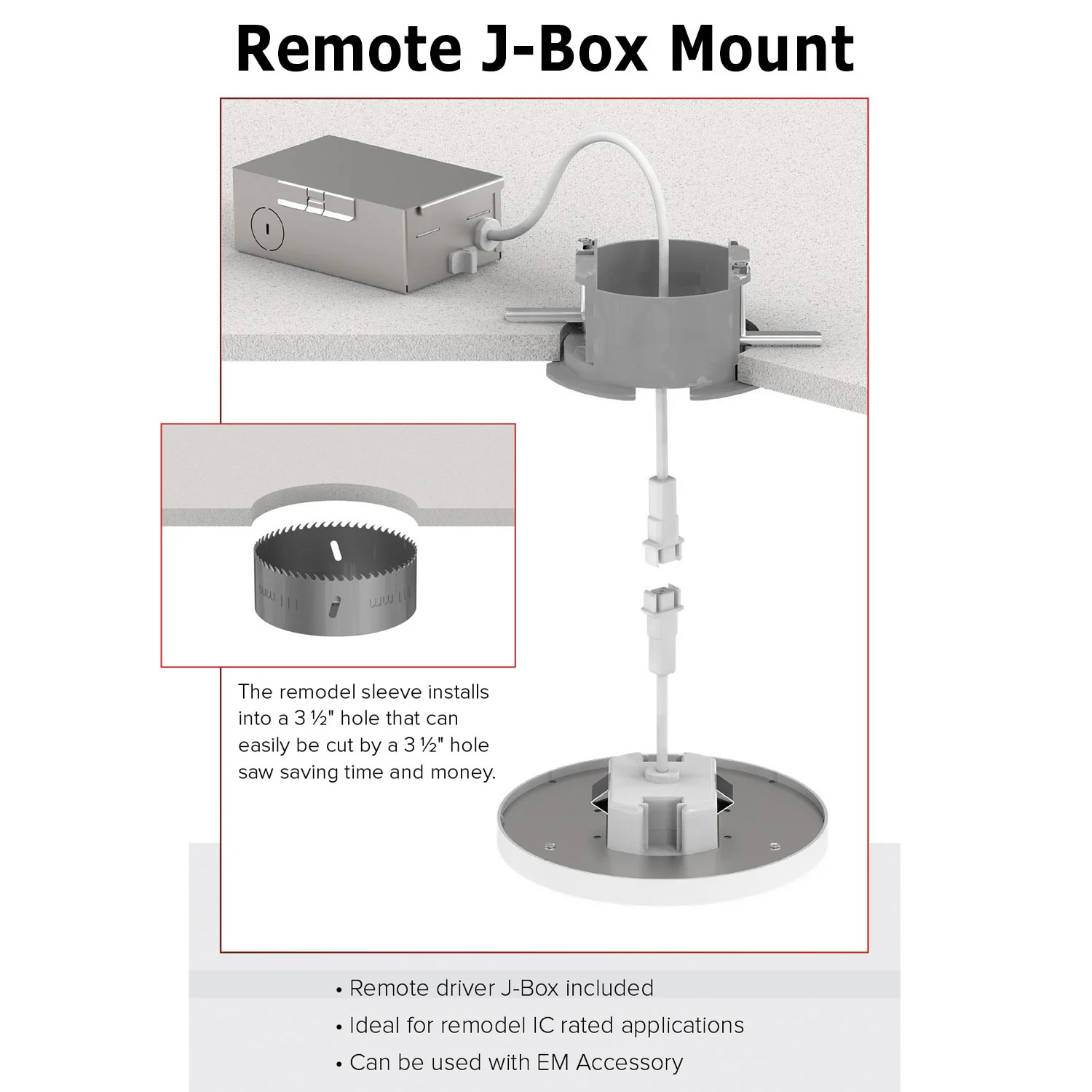

- Remote Mount uses a convenient 3 1/2" sleeve that can be installed into any space using a standard 3 1/2" hole saw
- Quick snap installation with no housing required
- Ideal for remodel IC-rated applications
- Eliminates the need for a recessed housing, ideal for areas with limited plenum space

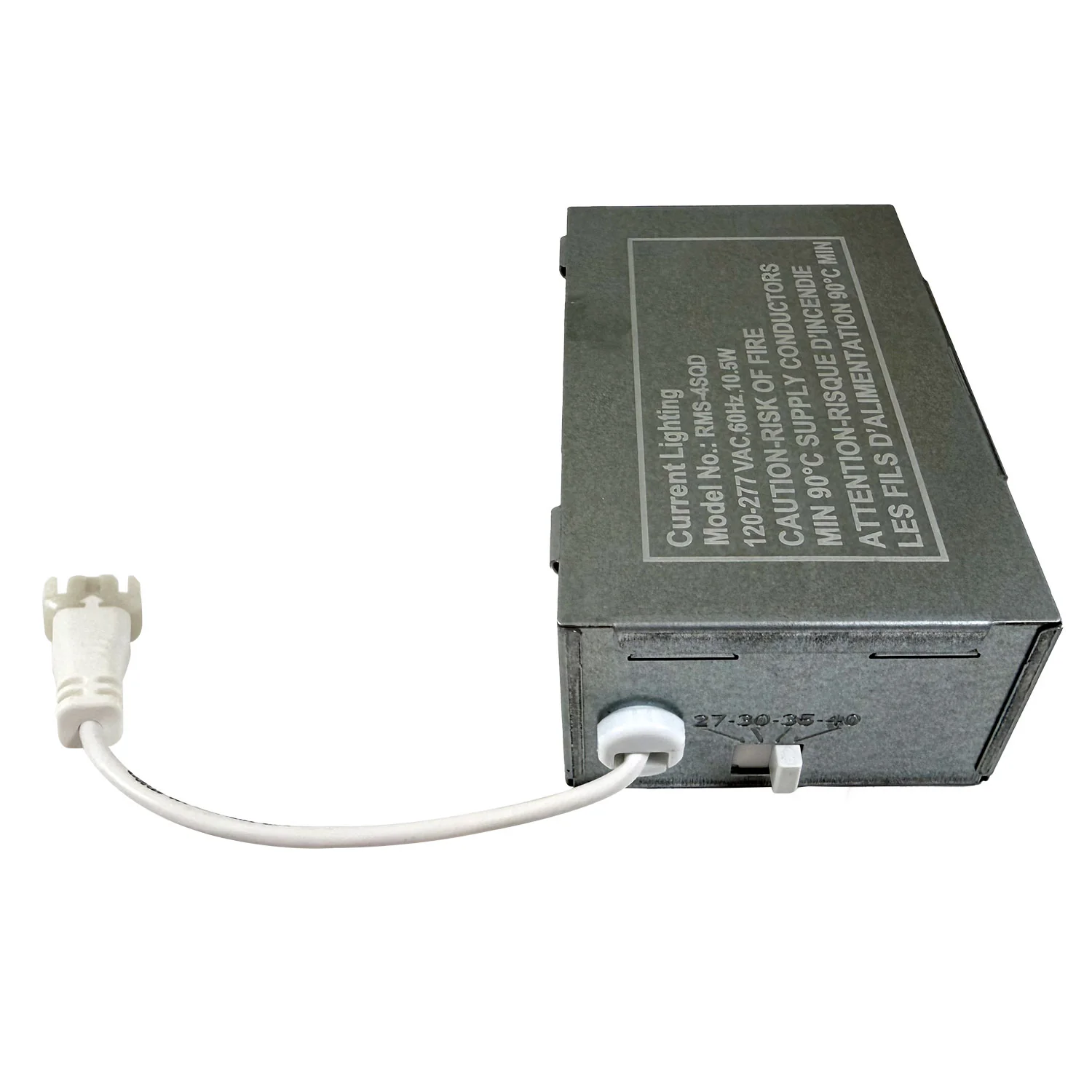

- Switchable CCT (2700K, 3000K, 3500K, 4000K) - by selecting one of four CCTs at installation with an integral switch accessible on the back of the driver
- Universal 120-277V, ideal for home and commercial applications
- TRIAC/ELC - Flicker-free dimming with 120-277V 0-10V Dim to Off or 120V Triac or ELV phase cut to 5%
- EMI: Meets Class A (<24dba) noise rating, FCC CFR 47 Part 15 Class B, ≥0.9 Power Factor, <20% THD

OPTICS:
- Utilizes the latest Edge-Lit LED technology
- Integral diffuse polycarbonate lens provides uniform light distribution
- Light distribution is free of distracting bright spots
- Visually comfortable with low glare

CERTIFICATIONS:
- cETLus listed to UL1598
- Can be used in direct contact with insulation (IC Rated)
- Suitable for wet locations, covered ceiling
- Suitable for use in clothes closets when installed in accordance to N.E.C. 410.16
- ENERGY STAR certified
- Meets CA Title 24 High Efficacy (JA8 2019) requirements

Fixtures Type	Surface Mount
Size	4-in
Volt	120-277
Watts	9.9w
Finish	White
Shape	Round
Base	Integrated
Color	CCT Selectable
Color Temp	2700k, 3000K, 3500K, 4000K
Lumens	761 Lumnes
Incandescent Equivalent	65W
Rated Life	54,000 hrs
CRI	90
Energy Star	Yes
Warranty	5 Year Limited

Manual:

LBSES-4RD-RM-CS9-WH Brochure Manual
