DLFv4 SureFit 5-inch Selectable LED Flush Mount Downlight with Square Oil-Rubbed Bronze Trim
DLFv4 SureFit 5-inch Selectable LED Flush Mount Downlight with Square Oil-Rubbed Bronze Trim
Description
NICOR series 4 SureFit Ultra Slim Surface Mount LED Downlight is a versatile lighting solution that combines Selectable Color Temperature and Wattage options. Choose between 2700K, 3000K, 3500K, 4000K and 5000K Color Temperature options and 8W, 10W and 12W to optimize your lumen output up to 900 Lumens (650 Lumens for Wall Wash Version). The DLF4 effortlessly fits any decor with its sleek design, offering finishes in Black, White, and Oil-Rubbed Bronze, as well as both Round and Square shapes. With NICOR patented design, easily replace your old flush mount ceiling light without cutting new holes or installing new equipment. Using the included hardware, simply connect the wires to each of the three poke-in connectors and mount the fixture directly to a variety of junction boxes. The SureFit features a 54,000 hour lifespan and is protected by NICOR 5-Year limited warranty.
Features:- Includes one DLF4 SureFit LED downlight and one square oil-rubbed bronze magnetic trim
- 5 Selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
- 3 Selectable Wattage options to controls brightness (8W/600lm, 10W/750lm, 12W/900lm)
- Produces up to 1004 Lumens (3500K at 12W)
- Easily installs directly into metallic and non-metallic new construction 4/O junction boxes (see compatibility list)
- Wet-Location and Energy Star rated, and Title 24 and JA8 compliant
- Dimmable down to 5% using standard TRIAC or ELV dimmers
- Additional round, square, and wall wash trims available in black, bronze, and white
- 54,000 hour lifespan
- Protected by NICOR 5-year limited warranty
Specs

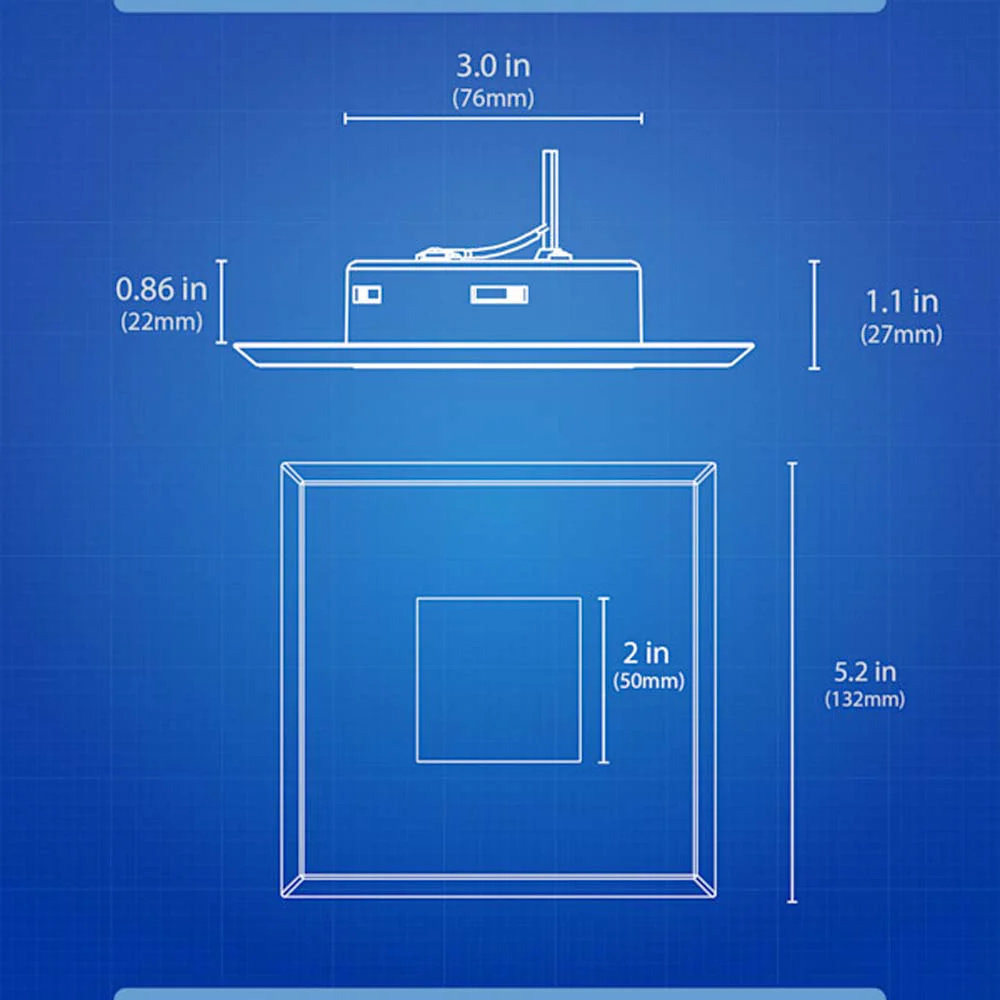

| Size (in.) | 5.2 |
| Shape | Square |
| Product Color | Oil-Rubbed Bronze |
| Finish | Powder Coat |
| Light Source | LED |
| Wattage | Wattage Selectable (8W-10W-12W) |
| Wattage Equivalent | 75 |
| Voltage | 120VAC |
| Lumen Output | 625-912 (2700K), 644-940 (3000K), 688-1004 (3500K), 676-986 (4000K), 618-902 (5000K) |
| Lumens Per Watt | 79.6-82.0 (2700K), 84.3-86.9 (3000K), 88.0-90.8 (3500K), 86.8-89.4 (4000K), 81.1-83.6 (5000K) |
| Color Temperature (CCT) | 5CCT Selectable (27K-30K-35K-40K-50K) |
| CRI | 93 |
| R9 Value | 58 |
| Dimmable | Yes |
| Dimming Type | TRIAC ELV |
| Operating Temperature | -4F to 104F (-20C to 40C) |
| Listings/Certifications | UL Certified, Energy Star, Title 24, JA8 Compliant, RoHS Compliant, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), FCC Class B, Wet-Location, UL 1598 Listed, cUL 1598 Listed, Patent Pending |
| Warranty (Years) | 5 Year Limited |
