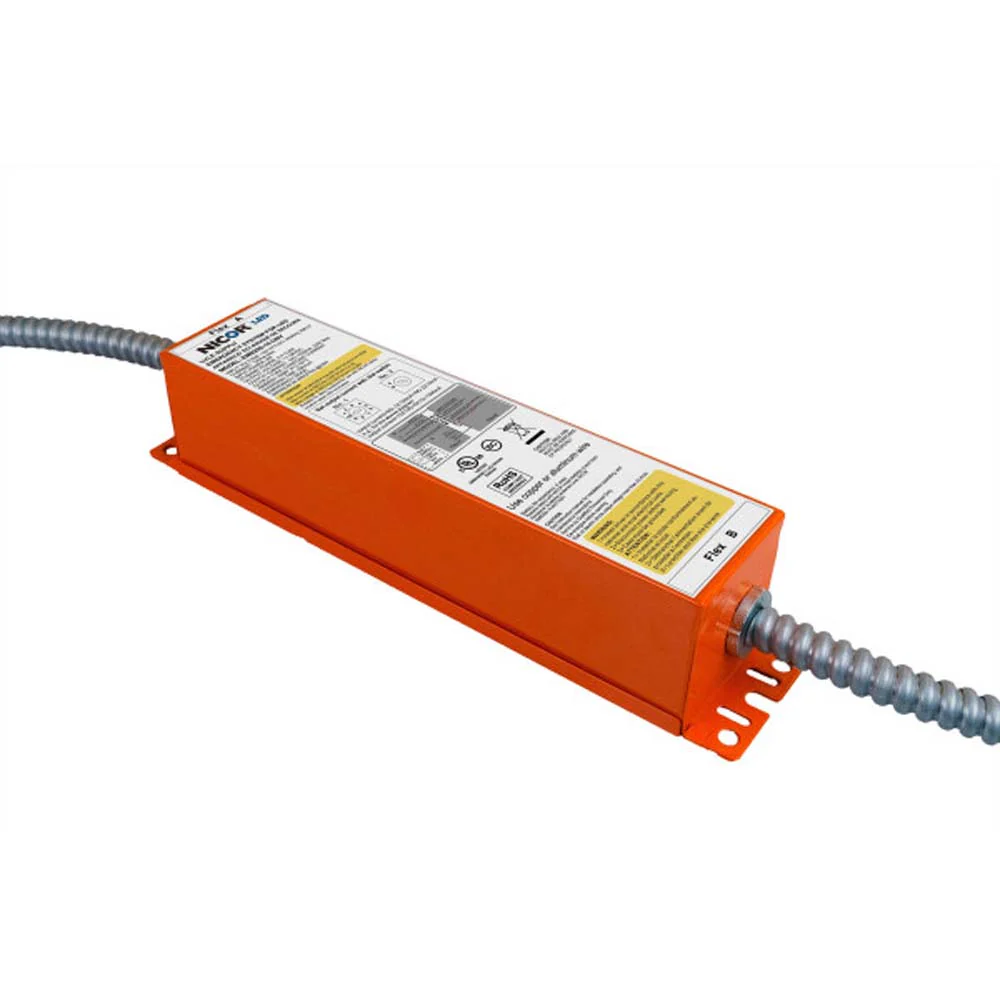

EMB Series 25W Universal LED Emergency Battery Backup Driver
Description
The NICOR EMB250 is an LED emergency driver designed for factory or field installations that enables normal and emergency operation of a switched or non-switched LED fixture. During a power failure, the EMB250 activates emergency mode to maintain consistent output wattage to the fixture without light degradation for a 90 minute duration. The EMB250 contains a 6000mAh Lithium Iron Phosphate battery, charger, test switch, and converter circuit in a powder-coated steel finished housing. Protected by NICOR 3 Year Limited Warranty.
Features:- Rated for Plenum, Damp Location, and IC Rated Fixtures
- Capacity: 6000mAh Lithium Iron Phosphate
- Emergency Mode: 90 Minutes (Min.) @ 25W
- Input Voltage: 120~277VAC (50/60Hz)
- Input Current: 100mA Max
Specs
| Size (in.) | 10 |
| Product Color | Orange |
| Finish | Powder Coat |
| Wattage | 25w |
| Voltage | 120-277V |
| Warranty | 3 Year Limited Warranty |
