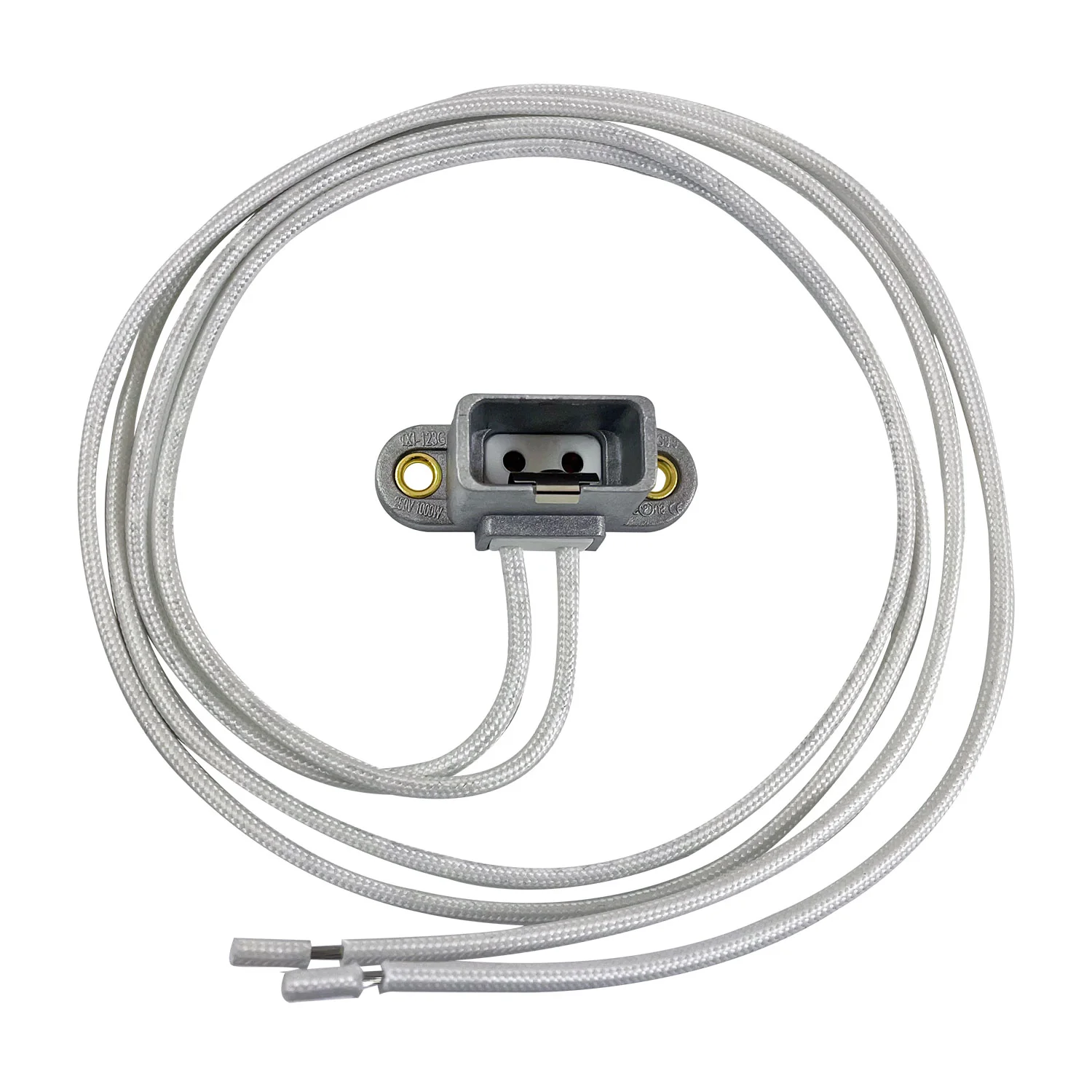

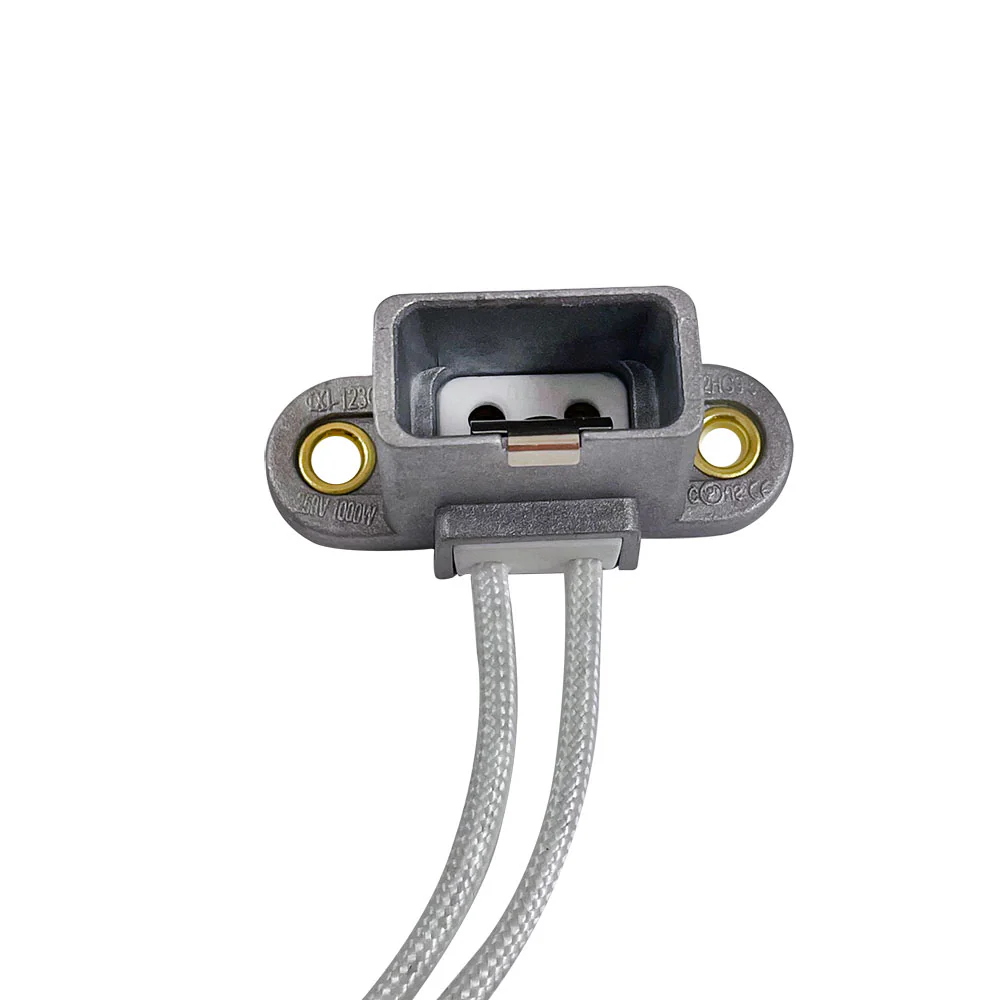

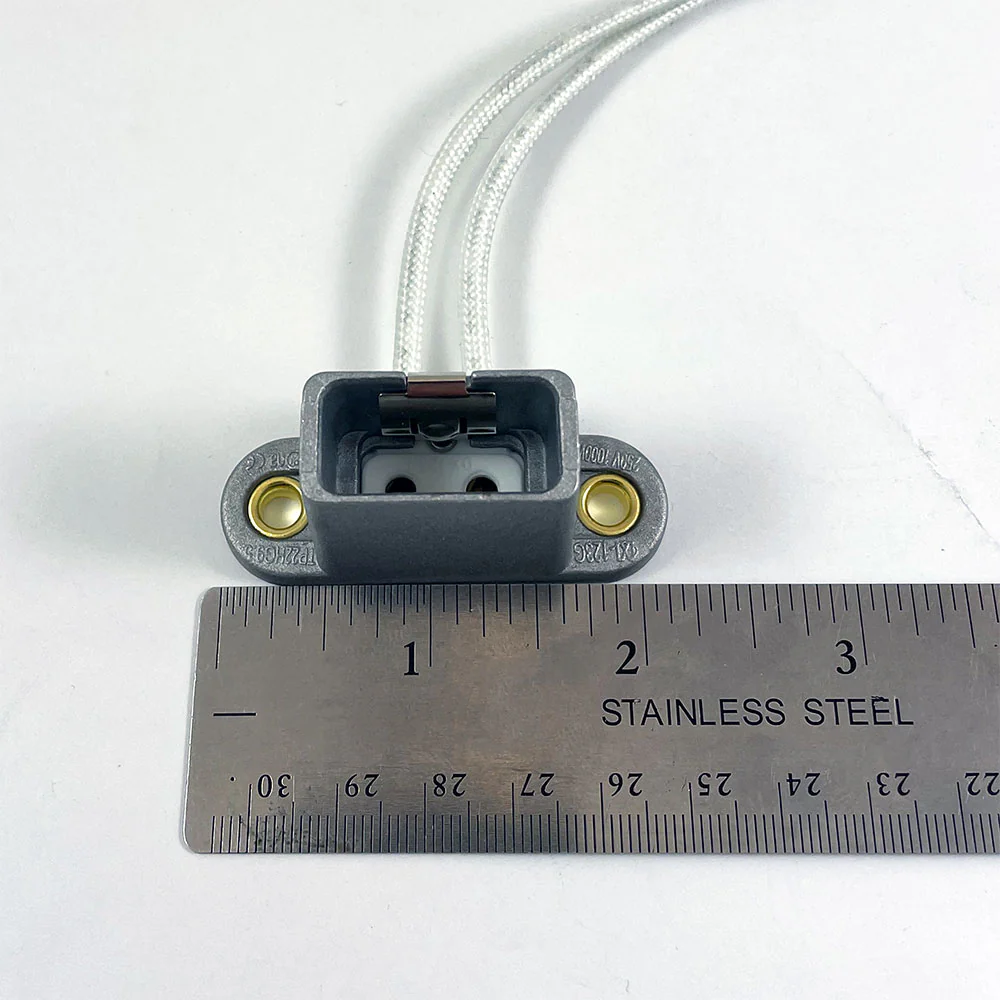

G9.5 lamp holder - Ceramic Steatite Socket - 69006 TP-22XL Replacement

BulbAmerica G9.5 Lampholder for bulbs with G9.5, 2-Pin Medium Base - replacement for Osram 69006 TP22 XL (TP-22H)


Product features and benefits: - Ceramic housings designed specifically for high temperature halogen and metal halide applications
- High quality contact materials for optimal mechanical and electrical properties
- Body Material: Ceramic Steatite Body / Die Cast Aluminum Housing
- Wire: 36 inch, 16 AWG
- Maximum Wattage: 1000W, Maximum Voltage: 250V

Areas of application:
- Halogen Fixtures
- Metal Halide Fixtures
- Halogen Instrumentation
- Halogen Equipment

This lamp holder is for bulbs with G9.5 base, like:
- EHC/EHB, GLC 575/115/300, EHD, GLD 750/115/300, EHF, GLE 750/115/1500, EHG, 1000/240V/G9.5, FEL, 1000Q/T6/RTP/C, FEP/240- 1000Q/T6/RTPFS, FLK, - FLK PLUS HPR 575/115, FLK/X 115V, - GLA 575/115/2000, - FRN 2000T7Q

Application	Socket
Base	G9.5 2-Pin
Color	White
Contact Material	Silver Plated Brass
Operation Temperature (F)	392
Type	TP-22
Voltage (V)	250
Wire Guage/Type	AWG16 SF2
Length (in)	36.00
