Narva 58308 - 6105 - 6.6A 105W Cable Flat Female Connectors Aircraft Bulb

Narva 58308 - 6105 - 6.6A 105W Cable Flat Female Connectors Aircraft Bulb (Osram 58953 - 64339A)

The Narva Type 6105 Dichroic Halogen Airfield Lamp follows the company's world-class formula, offering a constant and powerful 105W lumen output combined with excellent optical adjustment and mercury-free design. The Narva 6105 has a female flat connector. It can be used in airfield approach, taxiways, runways, and stop bar lighting across the globe, thanks to full compliance with all international regulations.

Features:
- Made in Germany
- Socket: cable flat female
- Lifetime: 1000h
- High and constant luminous flux
- Strong light focus
- Axial light intensity (kcd): min. 30

Applications:
- Approach and threshold lights
- Runway and taxiway lights
- Airport Signs
- Stop bar and touchdown zone lights

Cross reference:
- 85392198 6.6A 105w/MR16 Female GmBh HS-Code
- JFR 60790-KLS 6.6A 105W-5-FC MR16 Female
- NARVA 58308 6105
- Osram 58953, 58960 6.6A 105MR16/64339AC, 64339 A 105-10
- SLI L2368 / 21498
- Philips 6105, 9230 192 859, 9230192859
- AirField Runway Taxiway
- Crouse Hinds

Manufacturer	NARVA
Origin	Made in Germany
Bulb Type	Halogen Bulbs
Base	Cable Flat Female Connector
Filament Type	C-8
Rated Current (A)	6,6
Reflector type	MR16
Wattage	105
Lumens	3000
Rated Life	1000 hrs

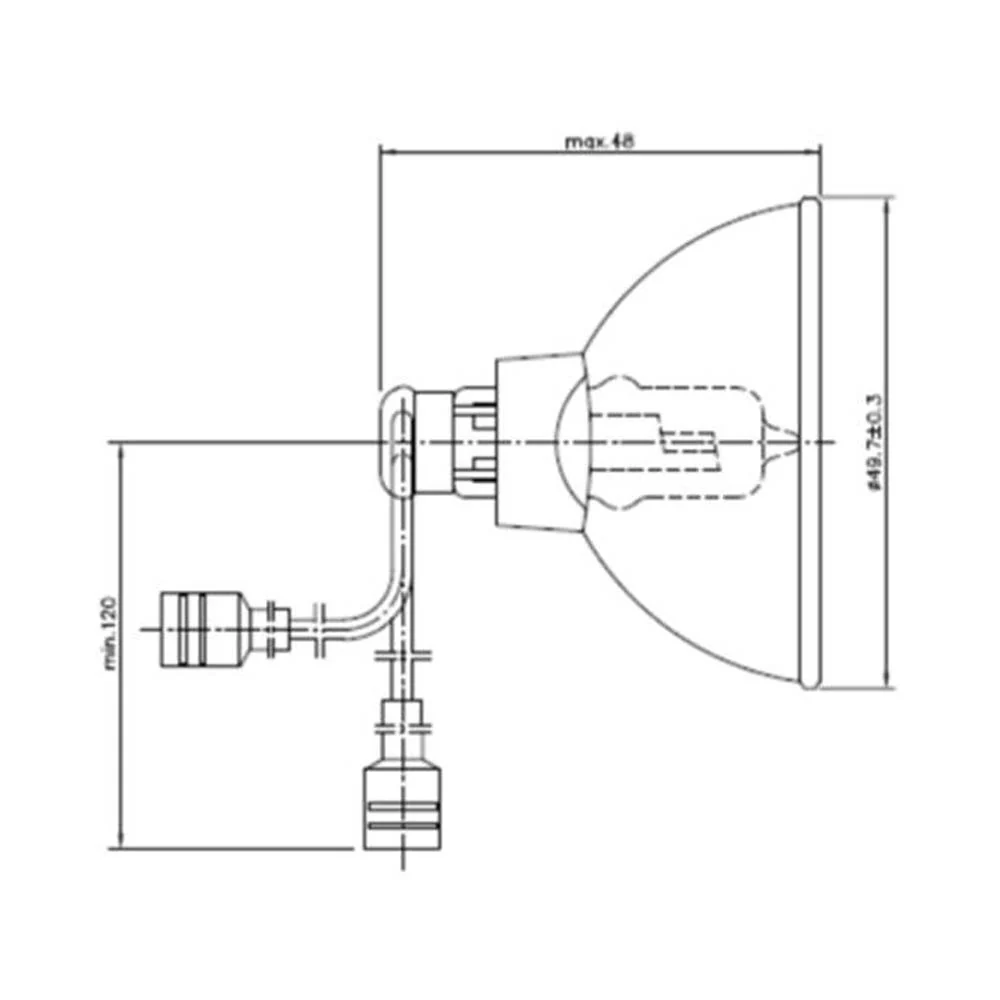

MOL (in)	1.77 (45 mm)
Diameter (in)	1.93 (49 mm)
Maximum allowed cable temperature (C)	250
Maximum allowed pinch temperature (C)	350
Burning Position	S90
Part Number	58308
UPC	4250686501551

Manual:

58308 Data Sheet
