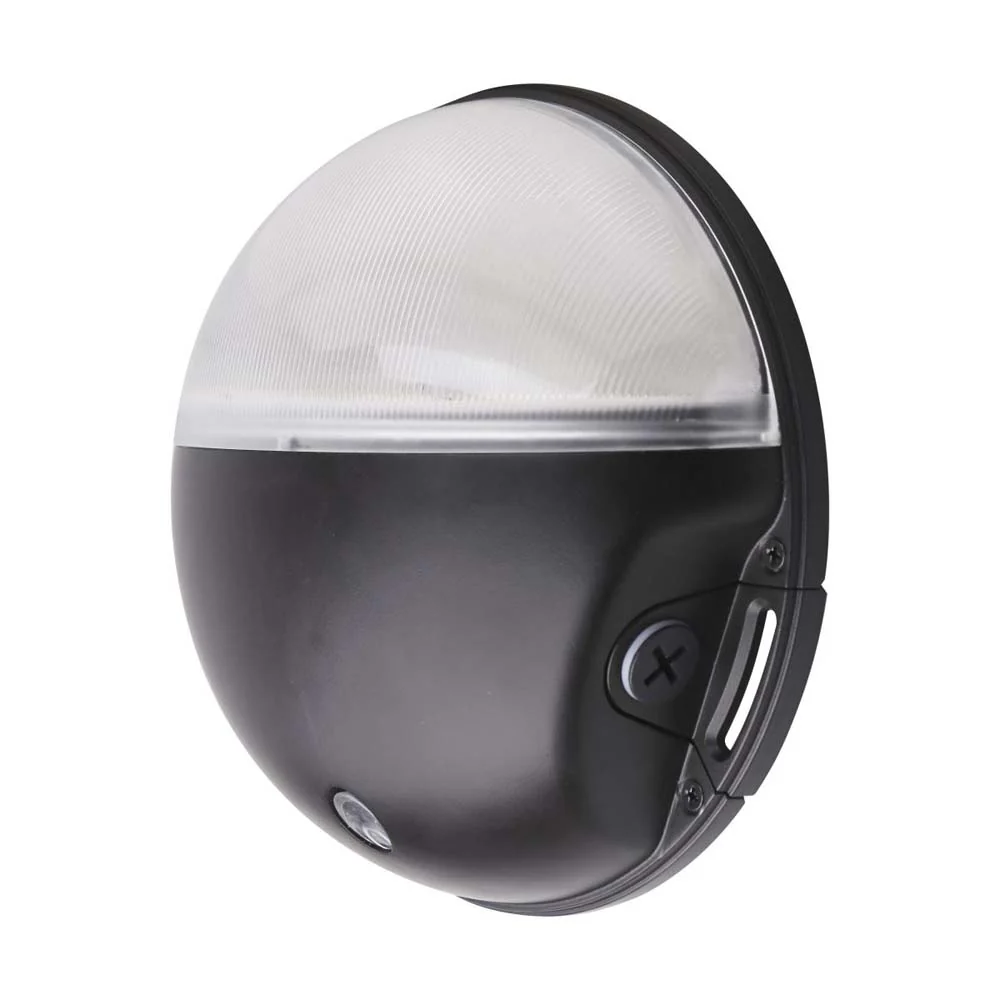

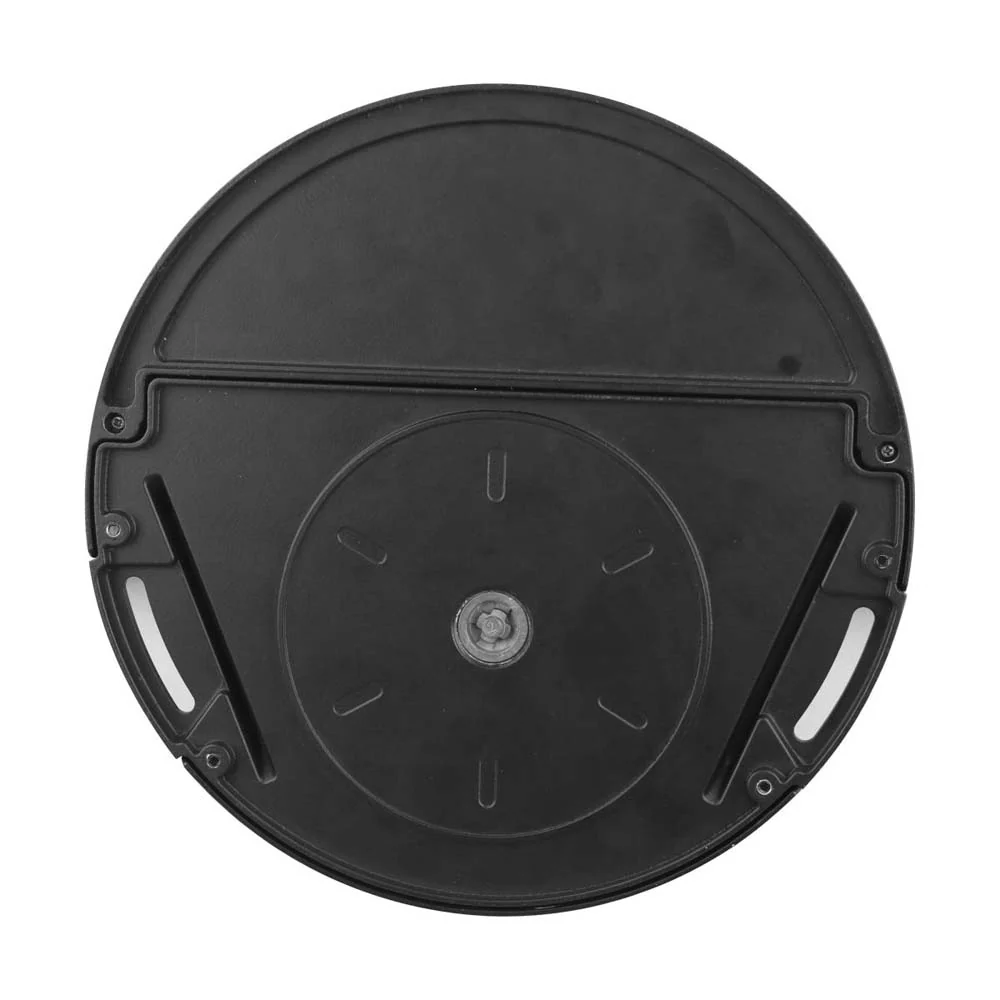

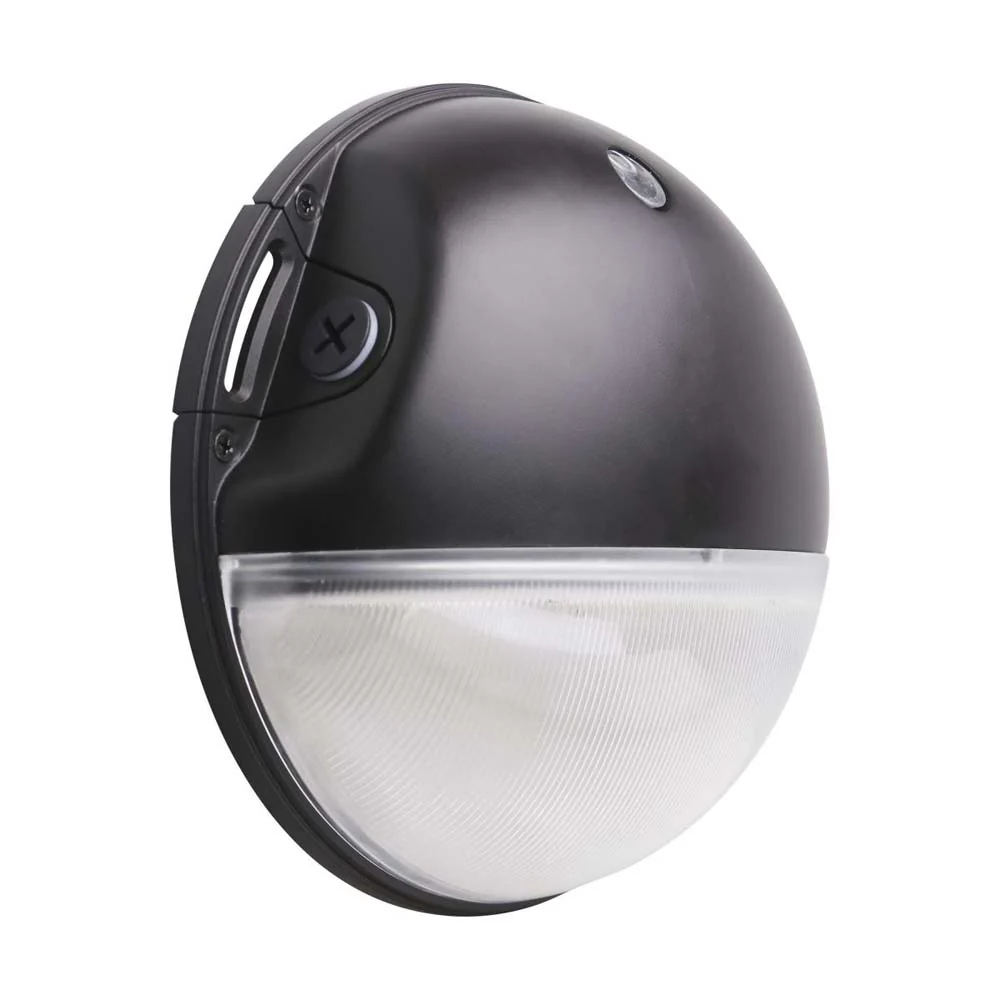

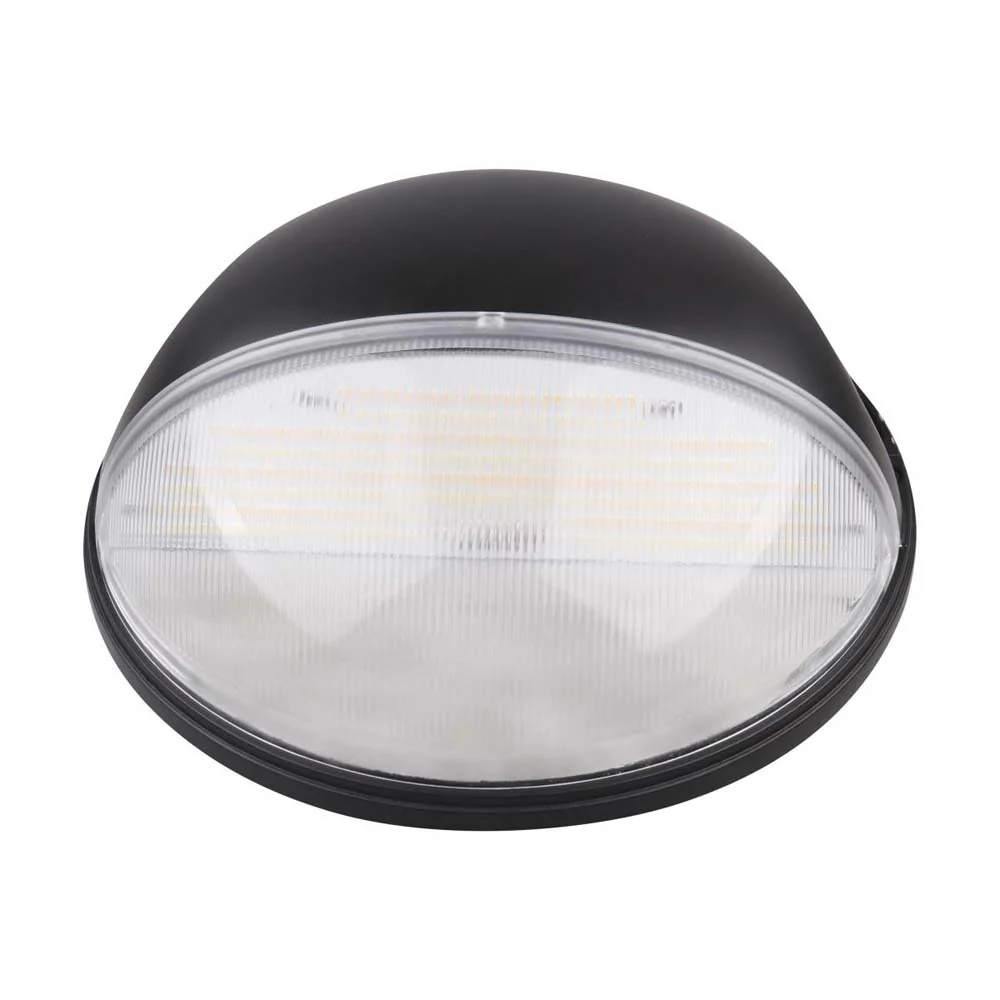

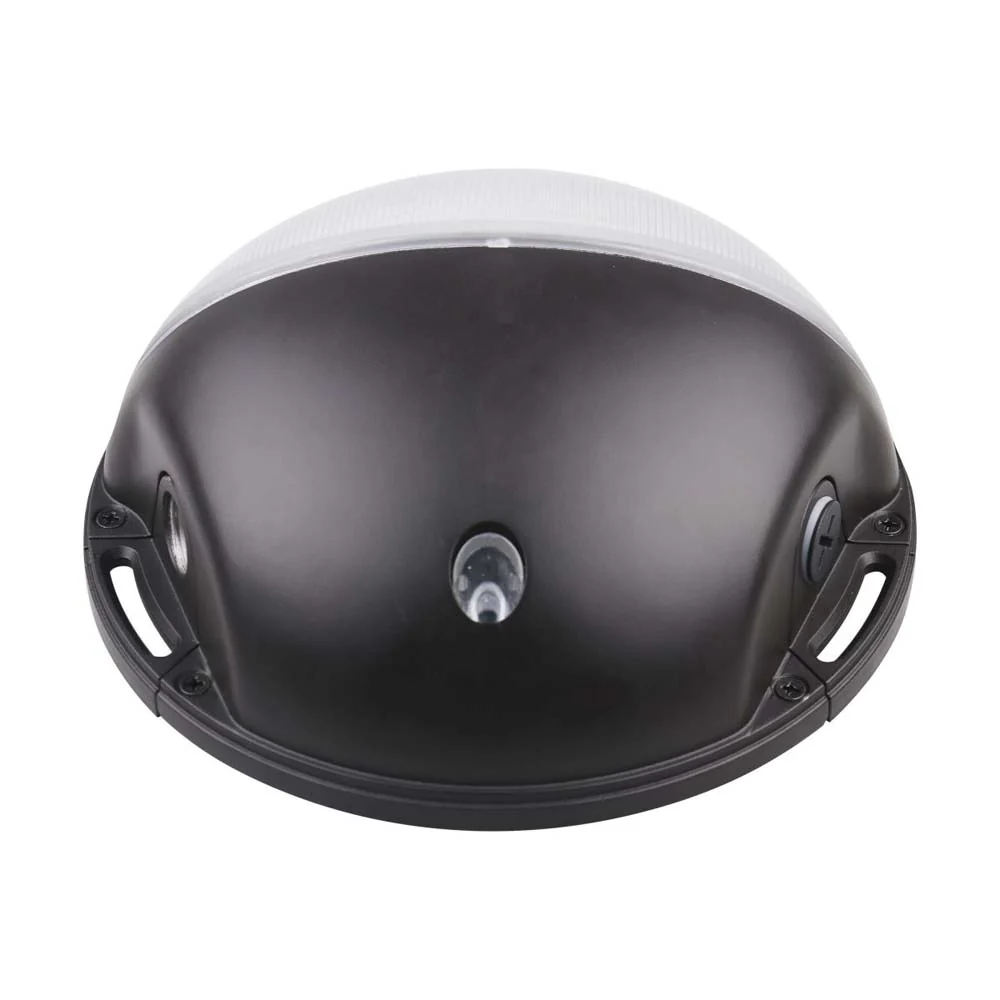

Nuvo 20 Watts LED Small Round Wall Pack CCT Selectable Bronze Finish 120-277v

Introducing our new LED small round wall packs. These cULus listed fixtures are CCT selectable (3000K, 4000K or 5000K) and feature an integrated by-passable photocell. They are 20W, IP65, 0-10V dimmable and offered in black, bronze and white finishes. They feature multiple 1/2 inch NPT knockout points, are 120-277V and have 2.5KV integrated surge protection.

Features:
- CCT selectable 3000K, 4000K, 5000K
- Integrated by-passable photocell
- Rated Life: 50,000 hrs, Dimmable
- UV stabilized powder coated finish
- Built-in surge protection - 2.5KV
- CEC Status: Lawful for sale in California
- Finish: Bronze, Shape: Round
- Warranty: 5 Year Limited

General
Fixture Type	Area Light
Finish	Bronze
Wattage	20
Lumen Output	2800
CCT (Kelvin)	3000K/4000K/5000K
Indoor or Outdoor Fixture	Outdoo
Specifications
Technology	LED
CRI	80
Voltage	120-277v
Beam Angle	100
Rated Hours	50,000 hrs
Operating Temperature	-30C (22F) to a maximum of 45C (113F)
Dimmable	Dimmable
Photocell	Bypassable
Surge Protection	Built-in surge protection - 2.5KV
Weight (lb.)	2.42
Material	Die-cast Aluminum
Dimensions
Height (in.)	8.7
Extension (in.)	3.4
Compliance
Safety Listing	cULus
Location Rating	Wet
CEC Status	California T24 Compliant
RoHS Complian	Yes
FCC Compliant	Yes
Additional Information
Additional Information	UV stabilized powder coated finish
Warranty	5 Year Limited

Manual:

65-751 Data Sheet
