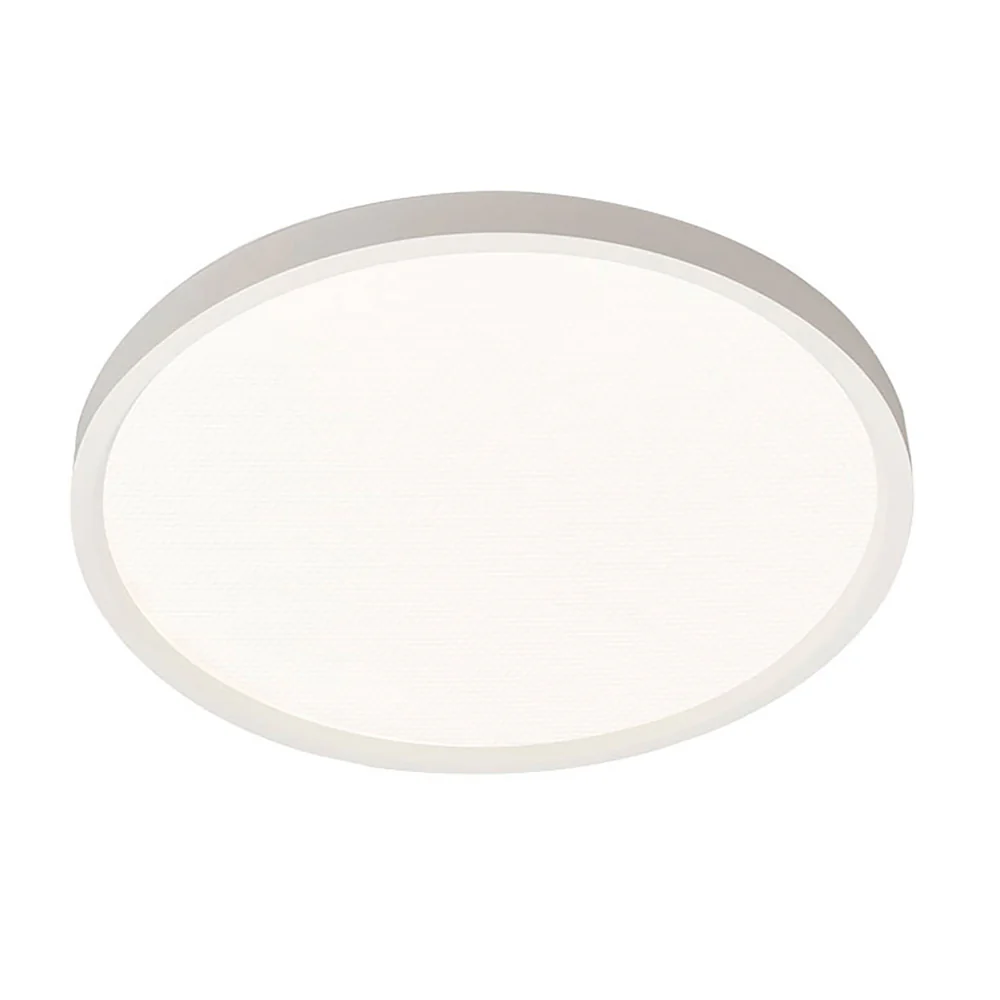

Philips 23W 2700K 10-in Round SlimSurface Dimmable Downlight

Philips 23W 2700K 10-in Round SlimSurface Dimmable Downlight - for 4 11/16 in. Square J-BOX

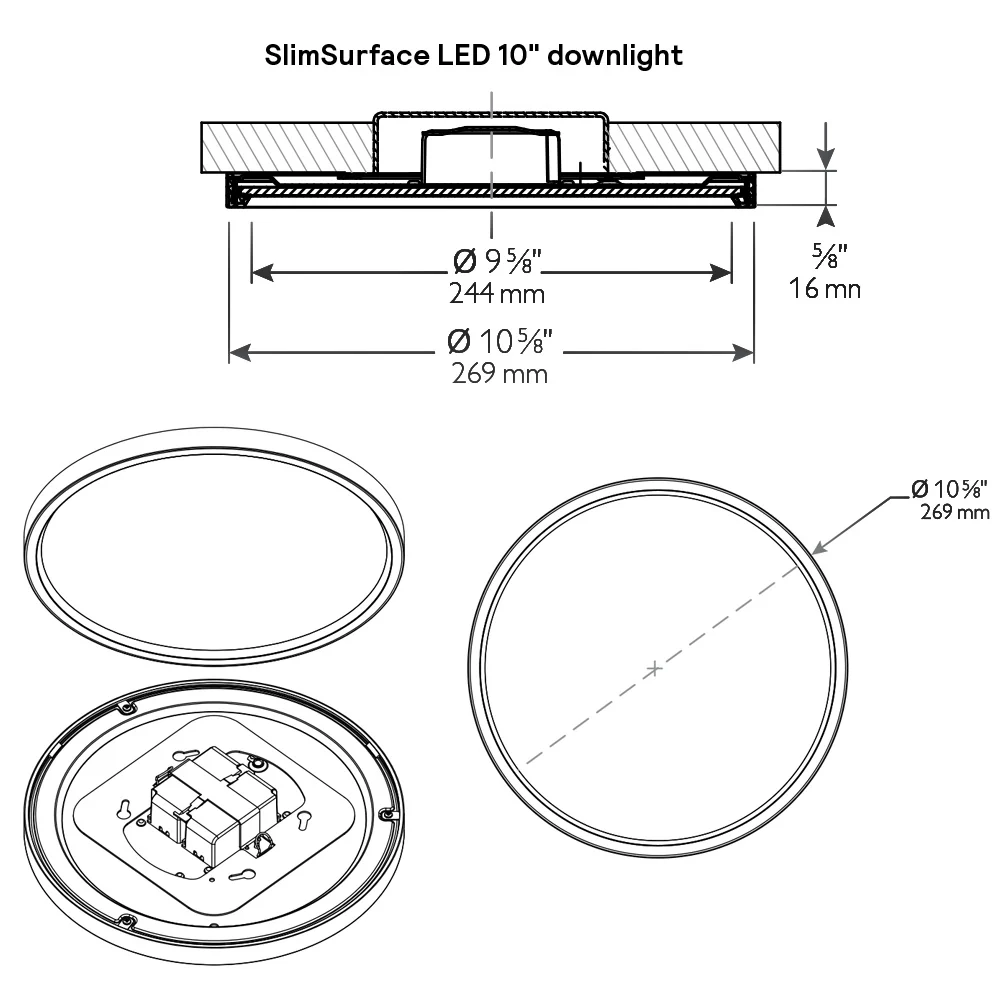

Lightolier SlimSurface LED leverages the latest LED technology, optical enhancements and performs similarly to typical recessed downlights but in a surface mount design. For use with 4 11/16 Square J-BOX. Delivers high lumen output at only 10" thick. SlimSurface LED has a completely flat lens with a narrow flange giving it an architecturally pleasing look. This downlighting solution also eliminates the need for an air-seal recessed housing or fire rated boxes, reducing material and installation costs.

Features:
- The thinnest solution with an integral driver for existing J-Boxes (4 11/16") or new construction.
- Even illumination edge-lit technology (flex trip LEDs) will provide illumination with no dark spots and shadows
- Surface mounting fits any ceiling and solves the problem of limited plenum space.

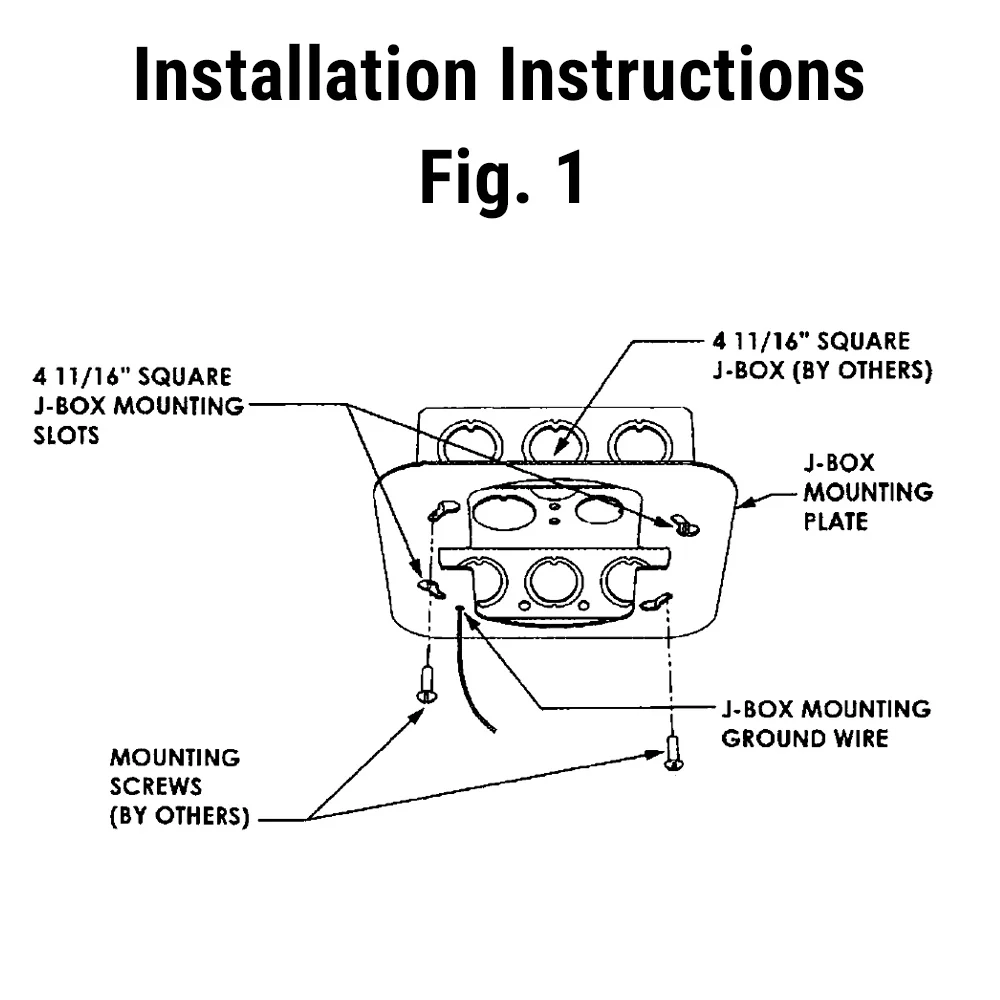

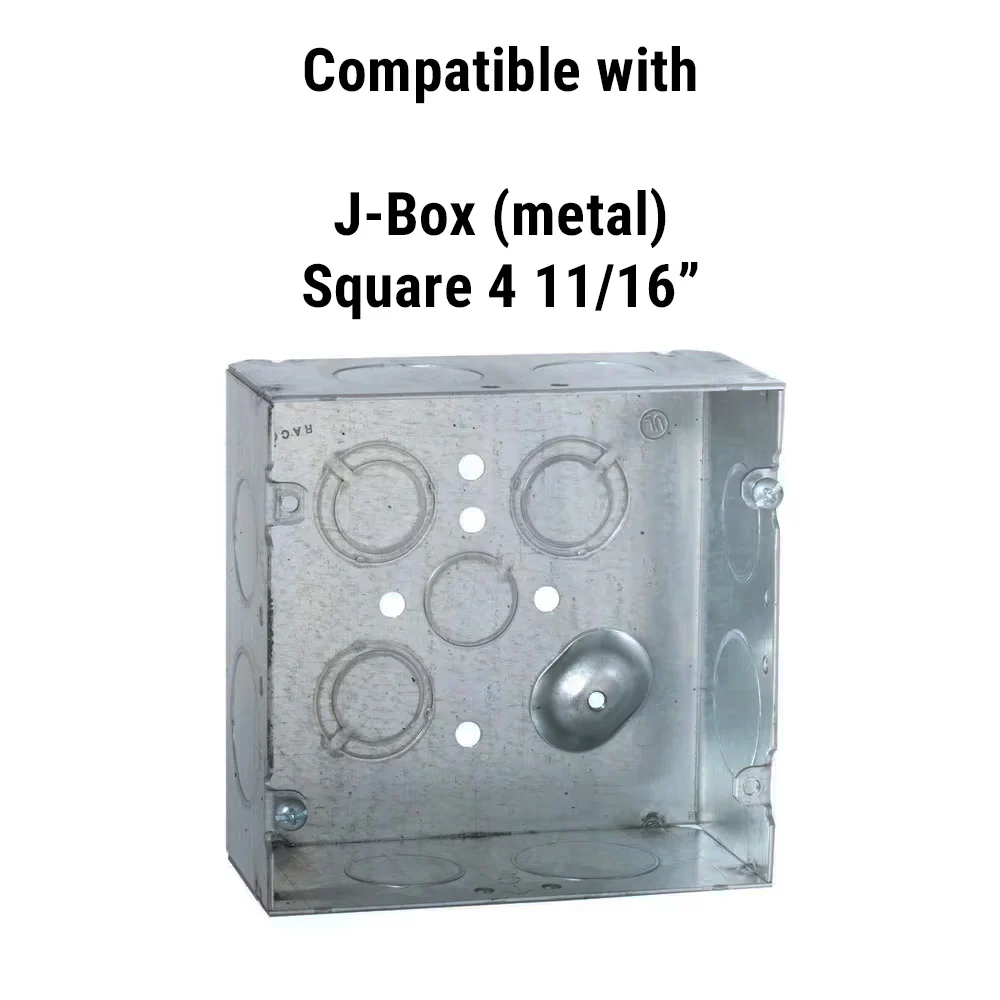

- Easy to install on standard J-Boxes square 4 11/16" (metal).
- Compatible with Lutron SELV-300P-WH dimmer.
- ENERGY STAR qualified
- Title 24 compliant

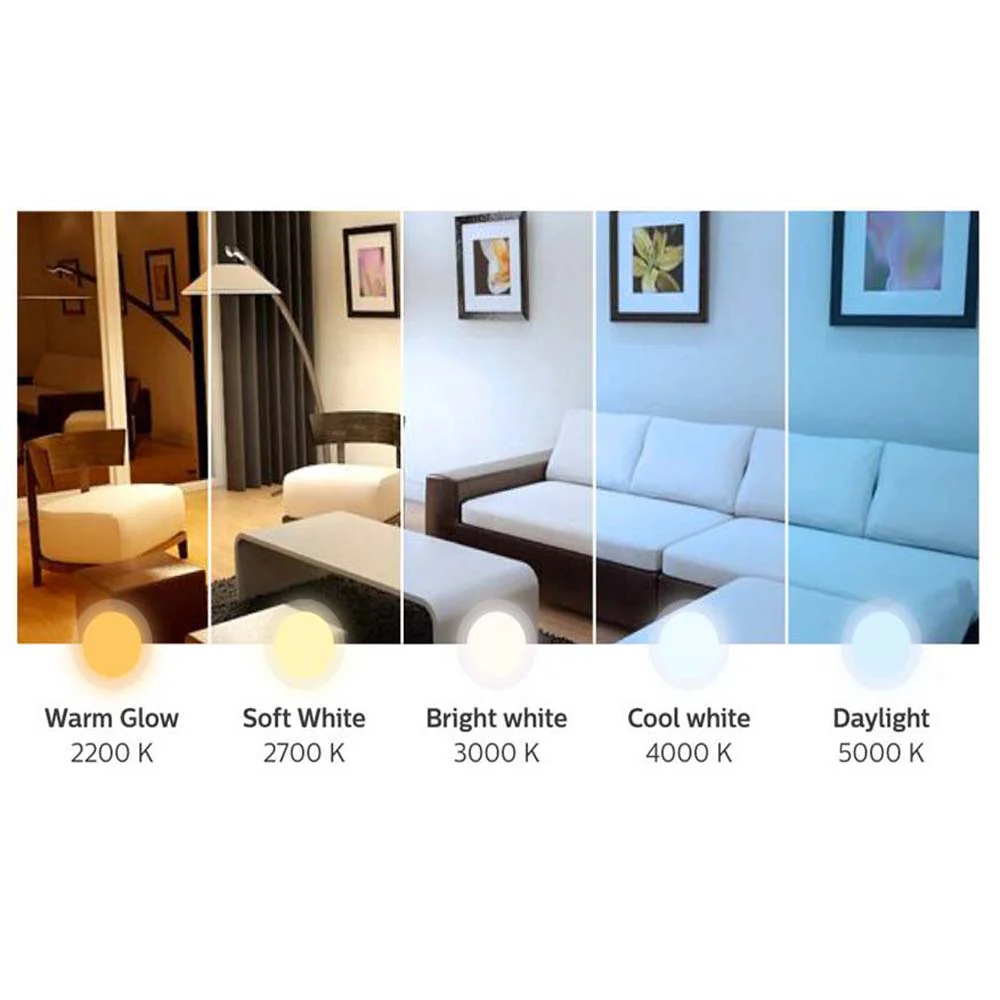

- 2700K Color Temp
- 2200 Lumens, 23.2 watts
- High transmittance lens allowing for smooth, comfortable light pattern
- integral class 2 driver
- 50,000 hour life
- non-conductive fixture for shower light application
- 120-277V
- 0-10V dimming

Manufacturer	Philips
Bulb Type	LED SlimSurface Downlight
Base	Wired
Voltage	120-277V
Wattage	23.2W
Incandescent Equivalent	150w
Luminous Flux (LM)	2200
Color Temperature (K)	2700K
Dimmable	Yes - Dimmable
CR	80
Rated Life	50,000 hrs
Mounting	Ceiling
Installation Type	J-Box
Warranty	5 year limited
UPC	190096016815

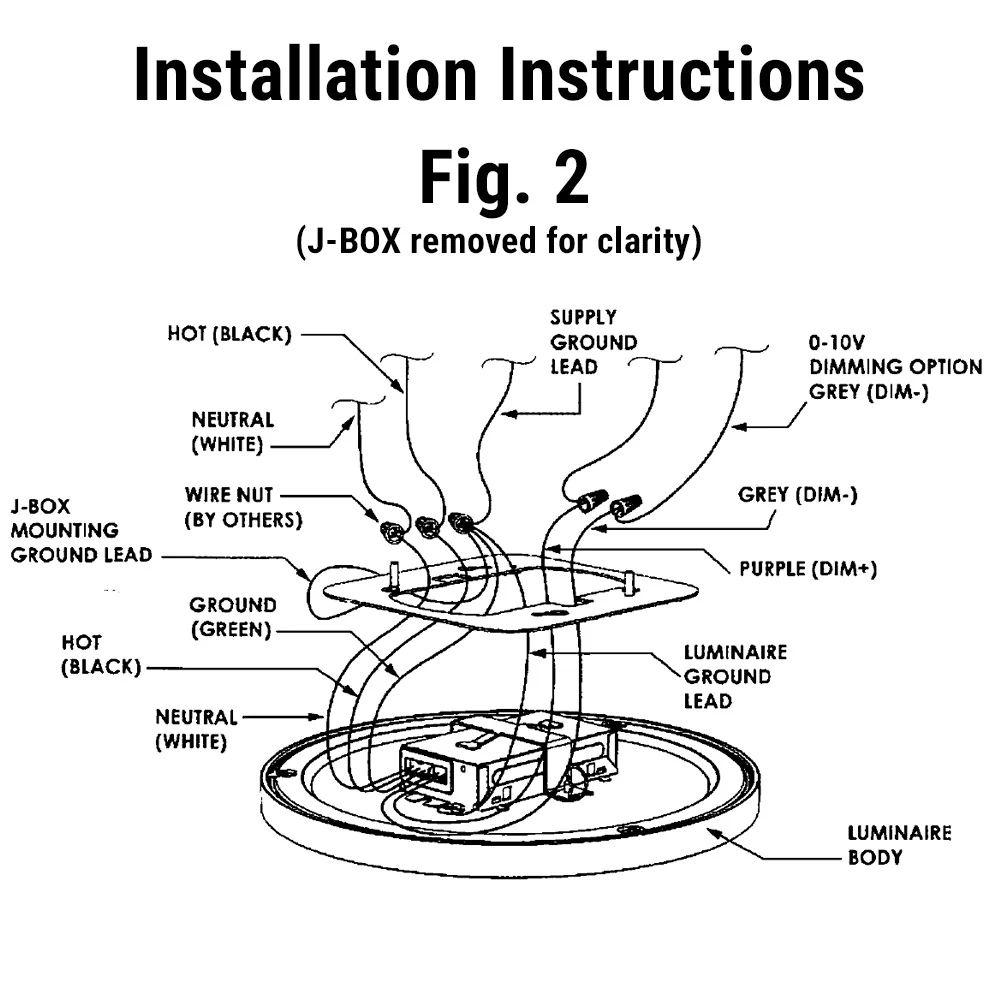

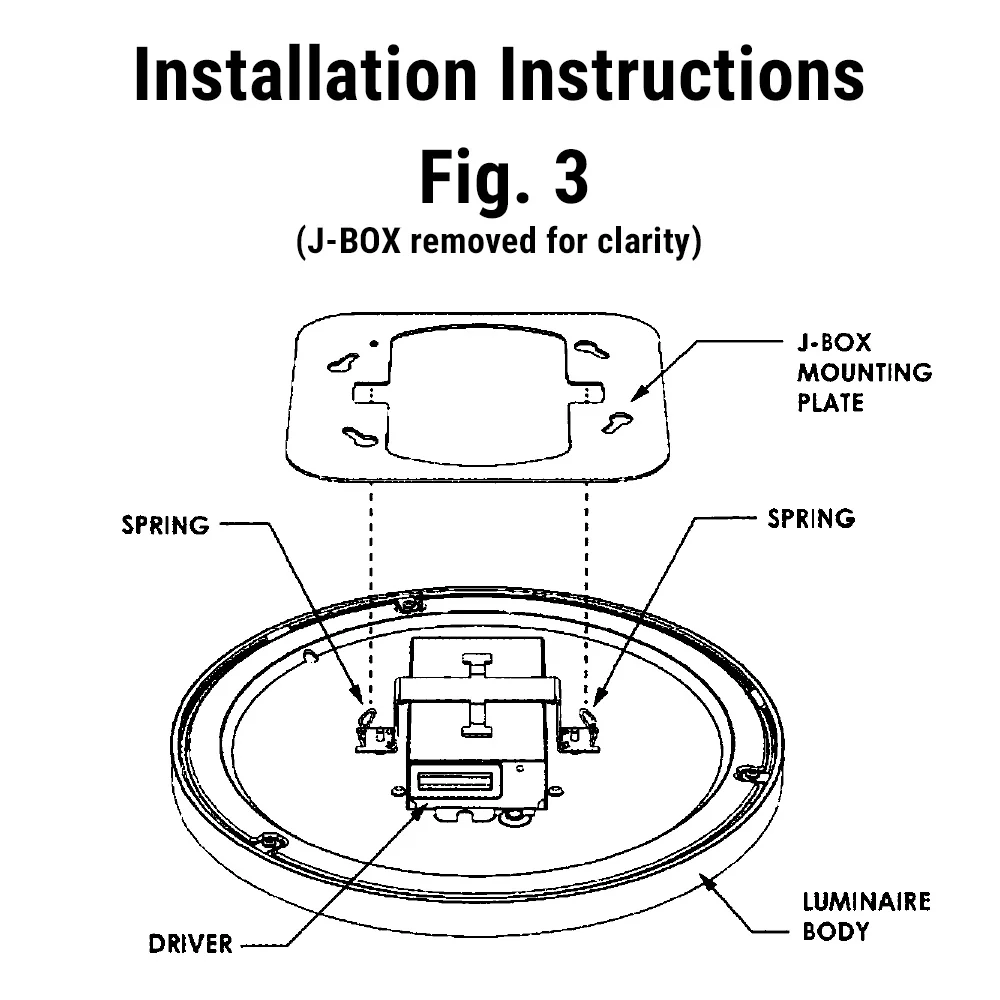

Manual:

Philips 784197 Installation Manual
