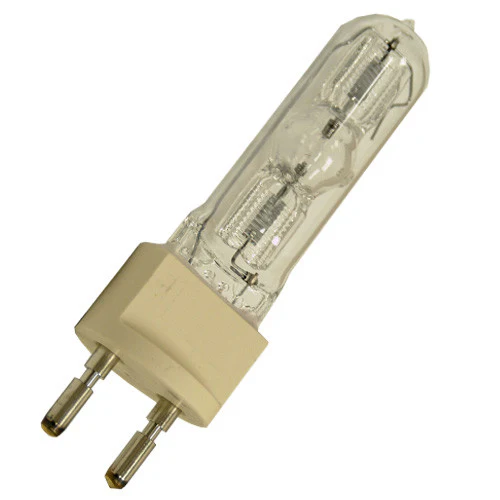

PHILIPS MSD 700 w metal halide bulb

Philips MSD lamp 700: Architectural MSD – single ended night colors. The high luminous efficacy and optimal lamp filling of the single ended Architectural "MSD lamps" create high beam intensity and excellent color rendering. While the compact arc of the lamp allows efficient beam control and high intensity. Ideal to illuminate architecture of all types at night.

Manufacturer	Philips
12NC Code	928170405114
SKU	245530
UPC	8711500195258
Cap-Base	G22
Main Application	Studio/Disco
Life to 50% failures	3000 hr
Color Rendering Index	75 Ra8
Color Temperature	6000K
Chromaticity Coordinate X	323
Chromaticity Coordinate Y	328
Luminous Flux Lamp EM	46000 (min), 50500 (nom) Lm
Luminous Efficacy Lamp EM	72 Lm/W
Watts	700 W
Lamp Wattage Technical	700 W
Lamp Current	11 A
Dimmable	Yes
Pinch Temperature	350 (max) C
Bulb Temperature	600 (max) C
Overall LengthC	175 (max) mm
Diameter D	40 (max) mm
Width F	52 (min), 53 (nom), 54 (max) mm
Light Center Length L	84 (min), 85 (nom), 86 (max) mm
Arc Length O	10 mm
Product number	245530
Full product name	MSR 700 1CT
Short product name	MSR 70. 1CT/3
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

Philips 245530 MSD 700

The MSD 700 bulbs is used in following equipment
- Derksen GL 700 MSD
- Enliten Toccata MSD effect projector
- Griven Everest CYM MSD 700
- Lampo, Weichhart 3-Chroma
- LDR Canto 700
- PC Lights Turbo 700W
- Robert Juliat Foxie
