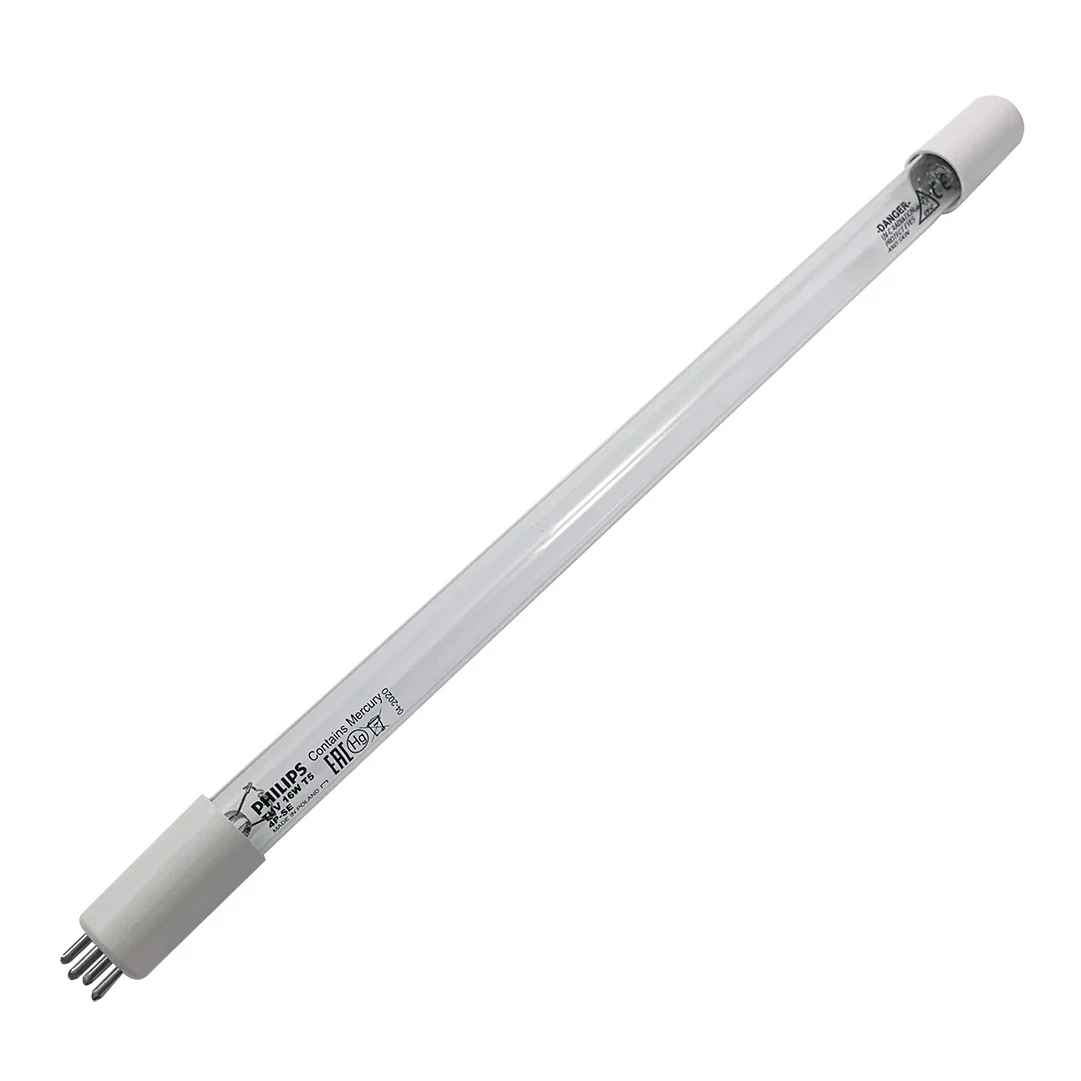

Philips TUV 16W 4P SE 385419 UVC Germicidal Lamp for water and air disinfection

Philips 385419 TUV 16W 4P SE UVC Germicidal Lamp for water and air disinfection

TUV TL Mini lamps are slim double-ended UVC (germicidal) lamps used in residential water and air disinfection units.
The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV TL Mini lamps offer almost constant UV output over their complete lifetime,
for maximum security of disinfection and high system efficacy.

Application:
- Deactivation of bacteria, viruses and other micro-organisms
- Residential drinking water units
- Fish pond water units, In-duct air treatment units, Stand alone air purifiers.
- Areas with low maintenance and/or disruptive costs

Features:
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the lifetime of the lamp
- Useful lifetime of 9,000 hours
- Special lamp glass filters out the 185 nm ozone-forming radiation
- High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size - Warning sign on lamp indicates that the lamp radiates UVC
- EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

Brand	PHILIPS
12NC Code	927971404099
SKU	385419, 643858
Abbreviation Name	TUV 16W 4P SE UNP/32
Base	4-Pin
Bulb Type	UVC Germicidal Bulbs
Diameter (in)	0.75
Maximum Overall Length (in)	13
Rated Life (Hours)	9000
Shape	T5
Wattage (W)	16W
Voltage (V)	43V
UV-C Radiation	4.0W
EAN/UPC	8711500643858
EAN/UPC Case	8711500643865
Full Code	871150064385899

Manual:

Ozone emission statement Signify TUV 4W up to 800W
Germicidal Tubular Fluorescent EU Declaration of Conformity
