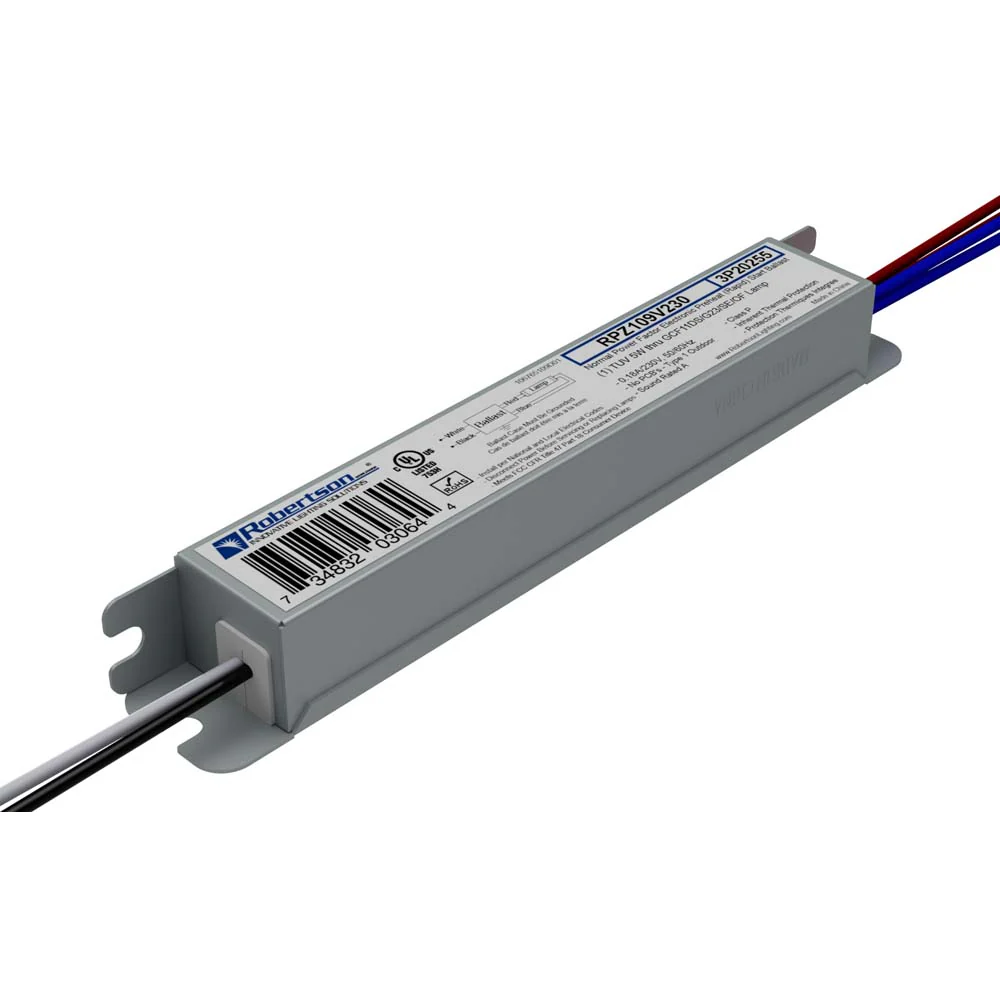

Robertson RPZ109V230 Electronic Rapid Start Ballast 230V

Electronic Rapid Start Ballast (for 2-pin and 4-pin Lamps), 165mA nominal lamp current, Input voltage of 230Vac (+/-10%), for 1 5W-11W Lamp, 47-63Hz.

PERFORMANCE:
- Power Factor = >0.50
- Encased & Potted
- Sound Rated A
- Internal Surge Protection
- Meets FCC Part 18 (Class B) for EMI and RFI Consumer Limits
- Meets ANSI Standard C62.41 for Transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements

APPLICATION:
- Maximum Case Temperature: 167F/75C
- Maximum Ambient Temperature: 122F/50C
- Minimum Starting Temperature: 23F/-5C
- Remote Mounting: 18 ft. Max. Lead Length, 18AWG

SAFETY/STANDARDS:
- UL/935 Listed (Class P, Type 1 Outdoor)
- cUL (CSA/C22.2 Certifi ed)
- No PCBs, Type HL, Type CC
- Inherent Thermal Protection
- RoHS Compliant

Ballast Type	Electronic
Starting Method	Preheat Rapid Start
Unit Color	Galvanneal
Input Voltage	230Vac 10%
Lamp Connection	Series
Input Frequency	47-63Hz

- Actinic BL PL-S 9W
- G6T5
- G6T5/OF
- G8T5
- G8T5/OF
- GCF5DS/G23/SE/OF
- GCF7DS/G23/SE/OF
- GCF9DS/G23/SE/OF
- GCF11DS/G23/SE
- HNS S 5 W G23
- HNS 6 W G5
- HNS S/E 7 W 2G7
- HNS S 7 W G23
- HNS 8 W G5
- HNS S 9 W G23
- HNS S/E 9W 2G7
- HNS S11W G23
- HNS S/E 11 W 2G7
- TUV 5W
- TUV PL-S 5W
- TUV 6W
- TUV 8T5
- TUV 8W FAM
- TUV PL-S 9W/4P
- 20390 Osram HNS S 7 W G23
- 21061 Osram HNS 8 W G5
- 21062 Osram HNS S 9 W G23
- 23396 Osram HNS S 5 W G23
- 23398 Osram HNS S11W G23
- 23399 Osram HNS 6 W G5

Manual:

RPZ109V230 Data Sheet
