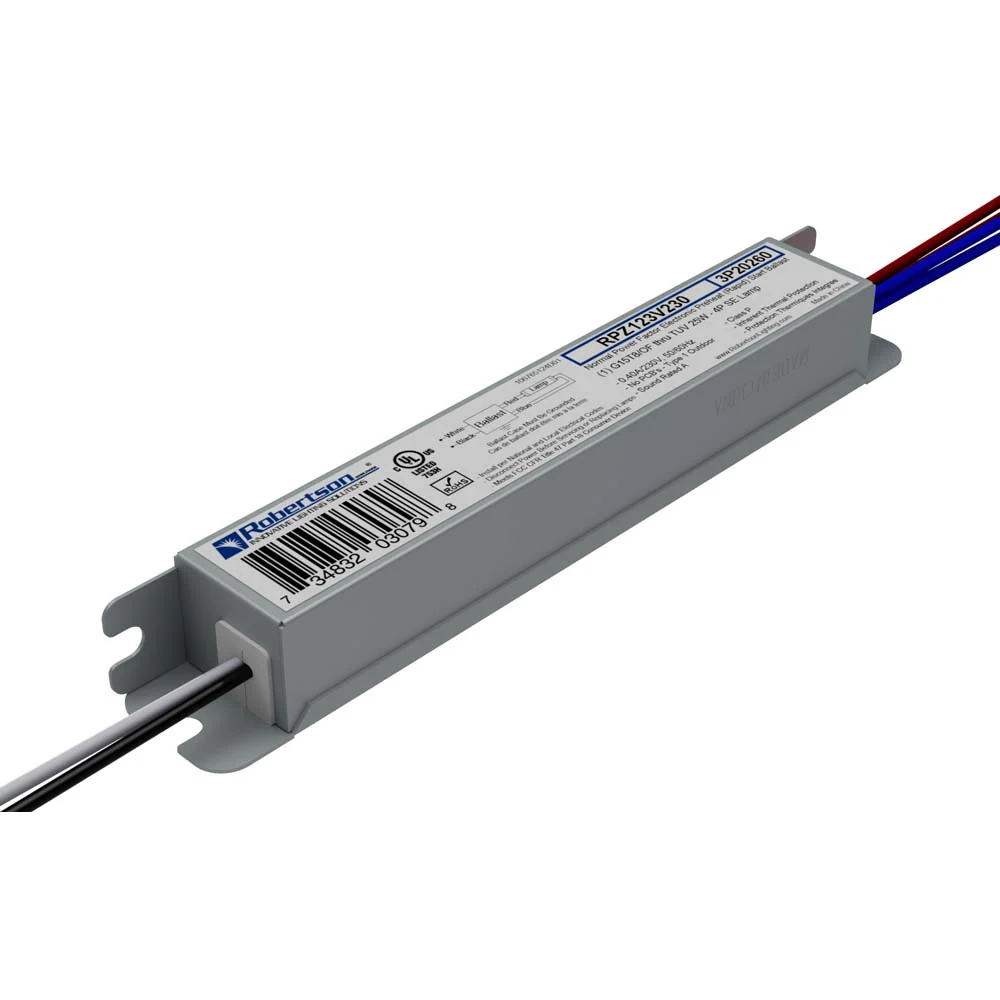

Robertson RPZ123V230 Electronic Rapid Start Ballast 230V

Electronic Rapid Start Ballast (for 2-pin and 4-pin Lamps), 350mA nominal lamp current, Input voltage of 230Vac (+/-10%), for 1 16W-25W Lamp, 47-63Hz.

PERFORMANCE:
- Power Factor = >0.50
- Encased & Potted
- Sound Rated A
- Internal Surge Protection
- Meets FCC Part 18 (Class B) for EMI and RFI Consumer Limits
- Meets ANSI Standard C62.41 for Transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements

APPLICATION:
- Maximum Case Temperature: 167F/75C
- Maximum Ambient Temperature: 122F/50C
- Minimum Starting Temperature: 23F/-5C
- Remote Mounting: 18 ft. Max. Lead Length, 18AWG

SAFETY/STANDARDS:
- UL/935 Listed (Class P, Type 1 Outdoor)
- cUL (CSA/C22.2 Certifi ed)
- No PCBs, Type HL, Type CC
- Inherent Thermal Protection
- RoHS Compliant

Ballast Type	Electronic
Starting Method	Preheat Rapid Start
Unit Color	Galvanneal
Input Voltage	230Vac 10%
Lamp Connection	Series
Input Frequency	47-63Hz

- Actinic BL TL-D 15W
- Blacklight BL368 Linear T12
- F20T12/BL
- G16T5/OF
- G16T5L/4PSE
- GFT18DL/2G11/SE/OF
- GFT24DL/2G11/SE
- GPL18K
- HNS 16W 4P SE
- HNS 16W G5
- HNS L 18 W 2G11
- HNS L 24 W 2G11
- PLL18W/TUV
- PLL24W/TUV
- TUV 16W FAM
- TUV 16W 4P-SE
- TUV 18W
- TUV PL-L 18W
- TUV 25W 4P SE
- TUV PL-L 18W/4P
- 20849 Osram HNS L 24 W 2G11
- 21054 Osram HNS L 18 W 2G11
- 55030 Osram HNS 16W 4P SE

Manual:

RPZ123V230 Data Sheet
