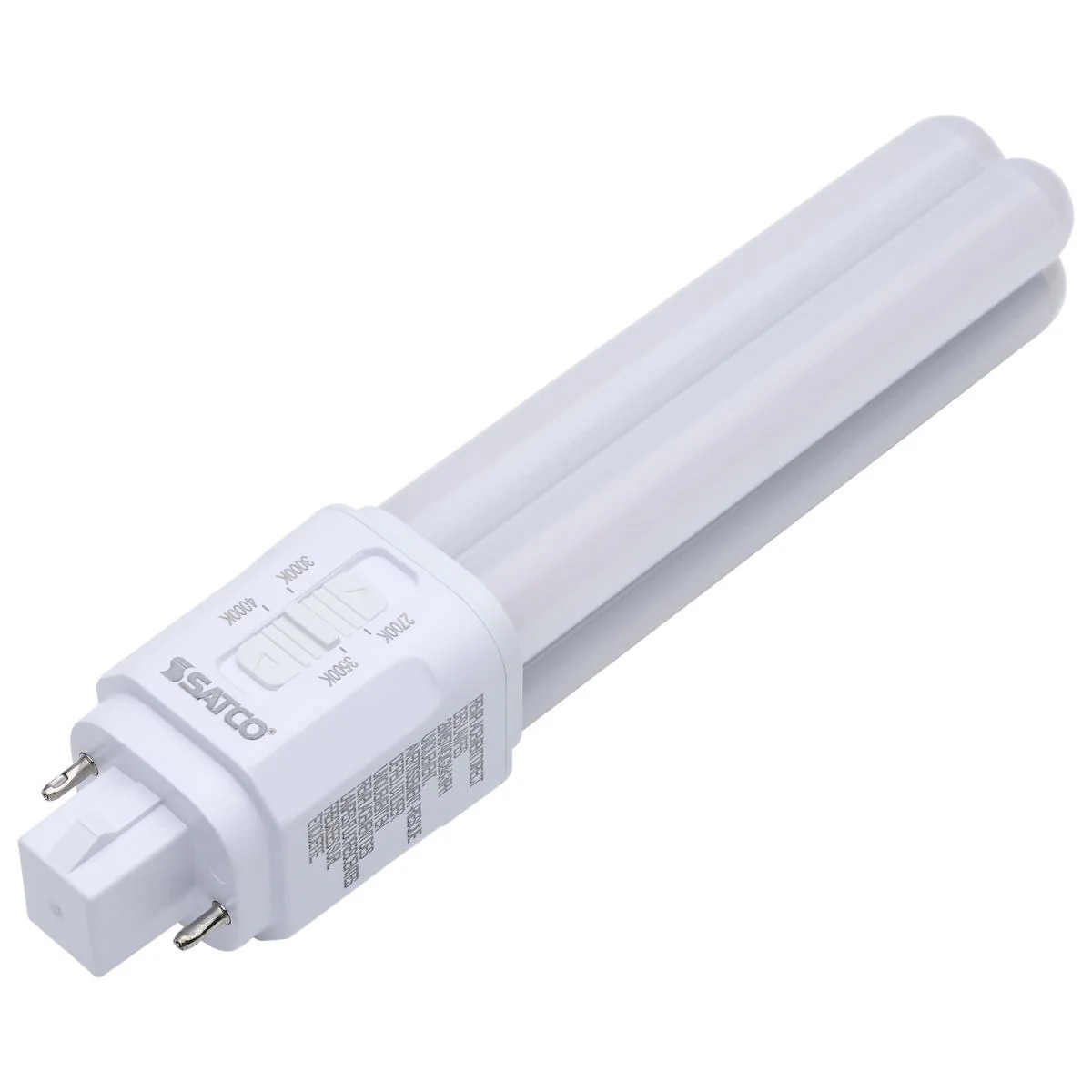

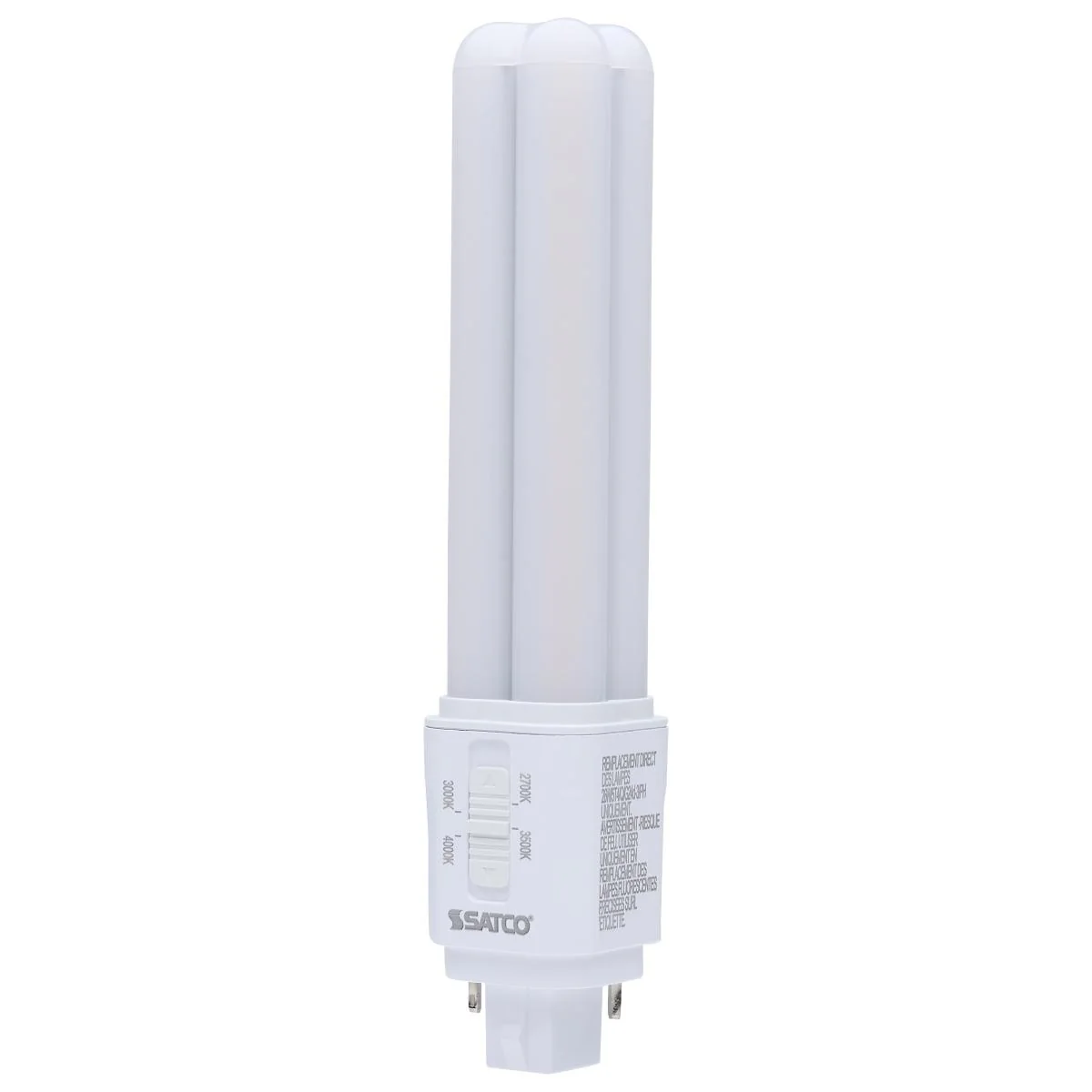

Satco 9w LED PL CCT Selectable G24d Base
Description
SATCO|NUVO’s innovative CFL replacement lamps provide an efficient solution for upgrading older 18W, 26W, or 32W CFL fixtures to the energy-saving advantages of LED technology. These lamps are compatible with three distinct ballast options, providing flexibility for your existing setup. Type A/B and Type A lamps are ideal for replacing older CFLs without requiring rewiring, while Type B lamps are perfect for installations without a ballast. With two base options available G24q (4-pin) and G24d (2-pin) and color temperatures from 2700K to 4000K, users can tailor their lighting to suit diverse environments. Delivering a broad range of lumen outputs, our lamps offer exceptional versatility and long-lasting performance, making them an excellent choice for both residential and commercial spaces.
Features:- Fixture Type: CFL Replacement Lamps
- Shape: PL
- Base: G24d
- Wattage: 9w
- Fluorescent Equivalent: 18W/26W/32W
- Voltage: 120-277v
- Finish: Frosted
- Lumen: 1050L/1100L/1150L/1200L

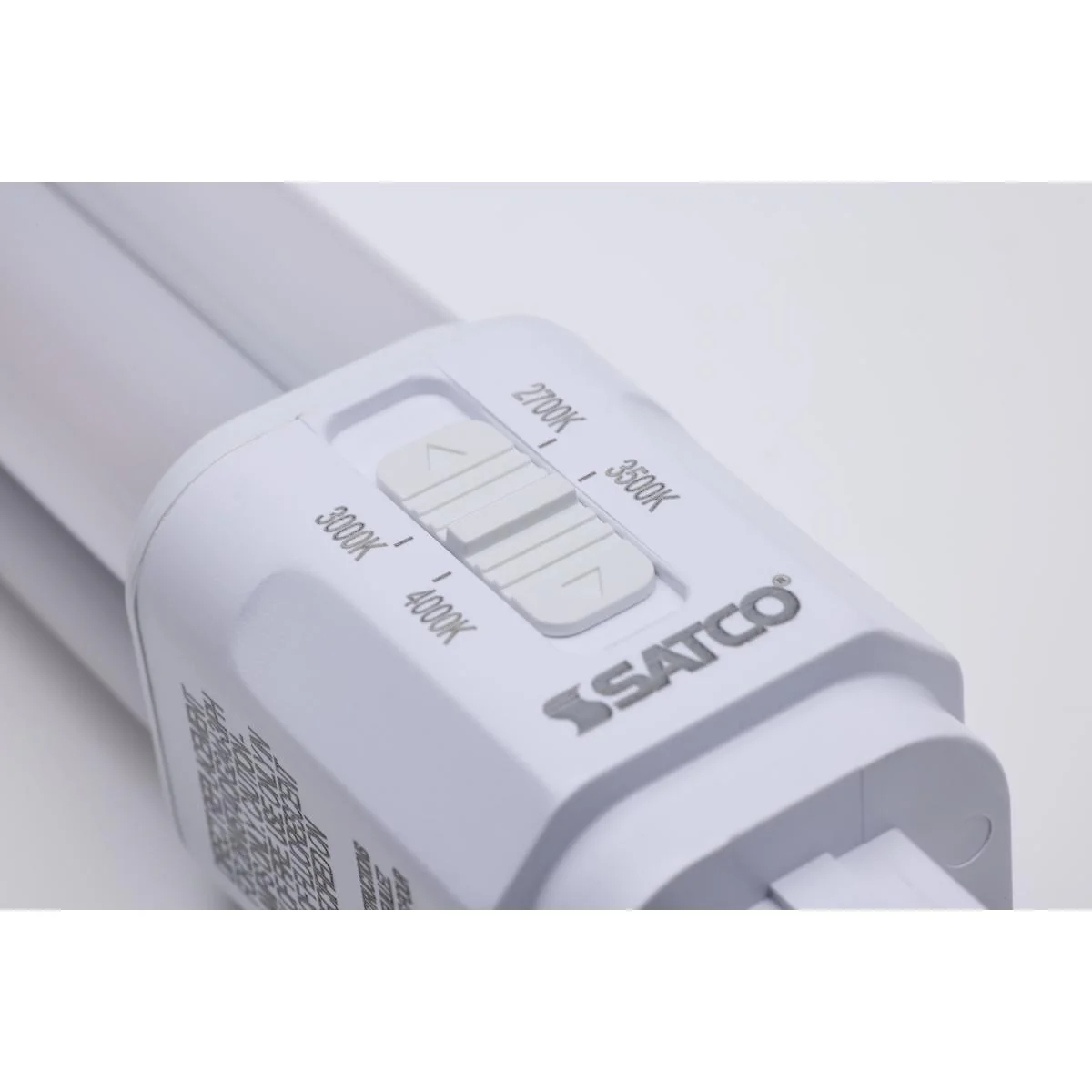

- CCT (Kelvin): 3000K/3500K/4000K
- Color Temp: Warm to Cool White
- Rated Life: 50,000 hrs
- Dimmable: Non-Dimmable
- Beam Spread: 360
- CRI: 80+
- Warranty: 5 Year Limited
Specs
| General | |
| Fixture Type | CFL Replacement Lamps |
| Shape | PL |
| Base | G24d |
| Wattage | 9w |
| Fluorescent Equivalent | 18W/26W/32W |
| Voltage | 120-277v |
| Finish | Frosted |
| Lumen | 1050L/1100L/1150L/1200L |
| CCT (Kelvin) | 3000K/3500K/4000K |
| Color Temp | Warm to Cool White |
| Rated Life | 50,000 hrs |
| Dimmable | Non-Dimmable |
| Beam Spread | 360 |
| CRI | 80+ |
| Technology | LED |
| Location Use | Indoor |
| Electrical | |
| Ballasting Requirements | Ballast Bypass |
| Operating Frequency | 50/60Hz |
| Power Factor | 0.9 |
| THD | <20% |
| Specifications | |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
| Weight (lb.) | 0.2 |
| Dimensions | |
| Height (in.) | 6.9 |
| Width (in.) | 1.4 |
| Length (in.) | 1.46 |
| Compliance | |
| Safety Listing | cULus - Certified; cULus - Classified; cULus - Listed |
| Location Rating | Damp |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | Lawful for sale |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| NSF Approved | Yes |
| Additional Information | |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5 Year Limited |
