Sunlite 9w LED PLD Plug In G24D Base Ballast Bypass 4000K Bulb - 26W Equiv

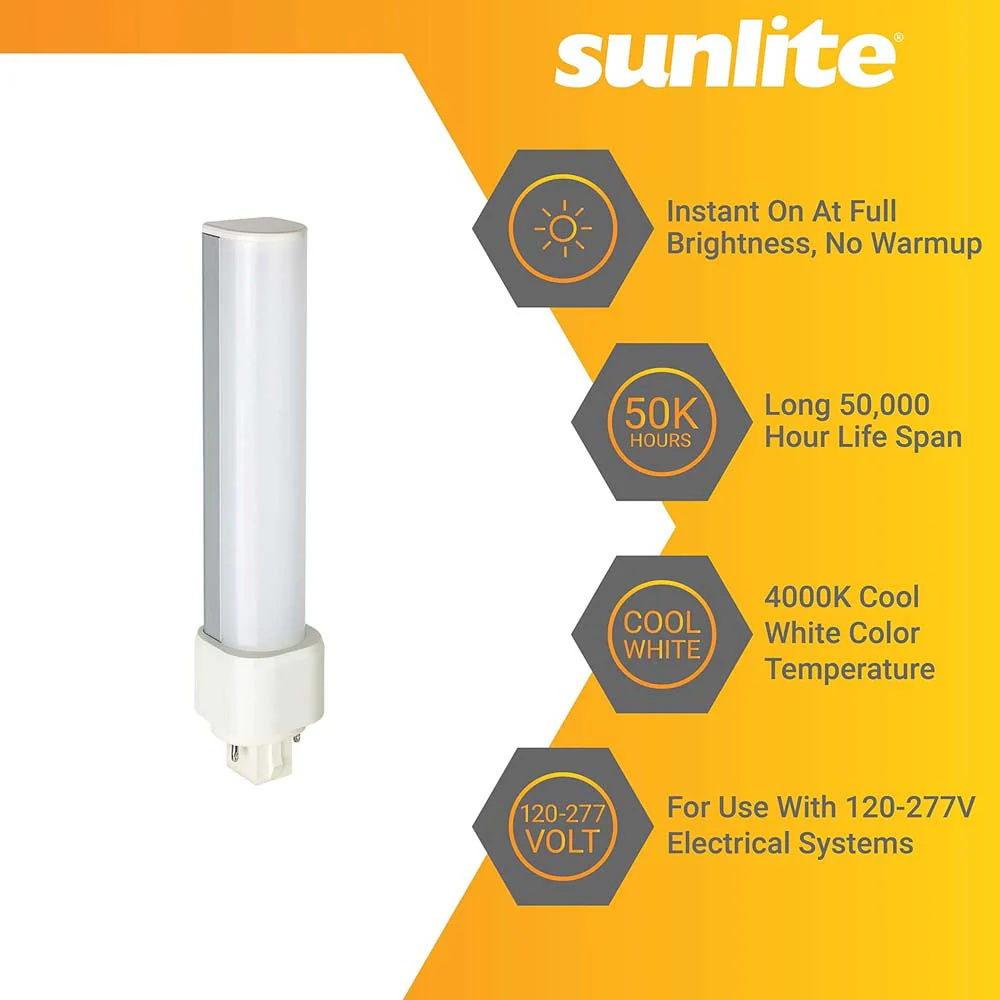

The Sunlite LED PLD Horizontal Plug in Light Bulb is the perfect source of light and replacement for 26-watt CLF bulbs. They are instant on at full brightness with no buzzing or flickering.

FEATURES:
- FEATURES:
- UPGRADE TO LED - Replace your 26-watt compact fluorescent PL bulbs with energy efficient 9-watt LED ballast bypass bulbs from Sunlite. They are instant on at full brightness with no buzzing or flickering. They feature a 2-Pin base (G24d) and a 270-degree beam angle that can be rotated at the base for optimal coverage.
- ENERGY EFFICIENT - These 9-watt LED bulbs are direct replacements for 26-watt CFL bulb. Low annual operating costs of only $1.08. (Based on 3 Hours/Day at $0.11/kWh)
- LONG LIFE SPAN - Provides up to 50,000 hours of energy efficient light means youll have to replace difficult to access bulbs less often. Makes commercial and residential fixtures virtually maintenance-free.
- A SAFER CHOICE - Unlike CFL bulbs these LED lamps contain no hazardous chemicals. They work with your existing ballasts so no special wiring or modifications are needed. They are UL Listed for damp location installation.
- BALLAST BYPASS REQUIRED - These fluorescent replacement LED bulbs do not require a ballast. You must bypass the ballast in all fixtures before installing these bulbs. Simple instructions available online or consult an electrician for more information.

General Characteristics
Base	G24d
Shape	PLD
Finish	White
Rated Life	50,000 hrs
Average Life Span Years	45
Dimmable	Non-Dimmable
Electrical Characteristics
Watts	9
Equivalent Wattage	18 equiv
Volts	120-277
Power Factor	0.9
Temperature	-20-45?
Light Characteristics
Lumens	1000
CRI	82

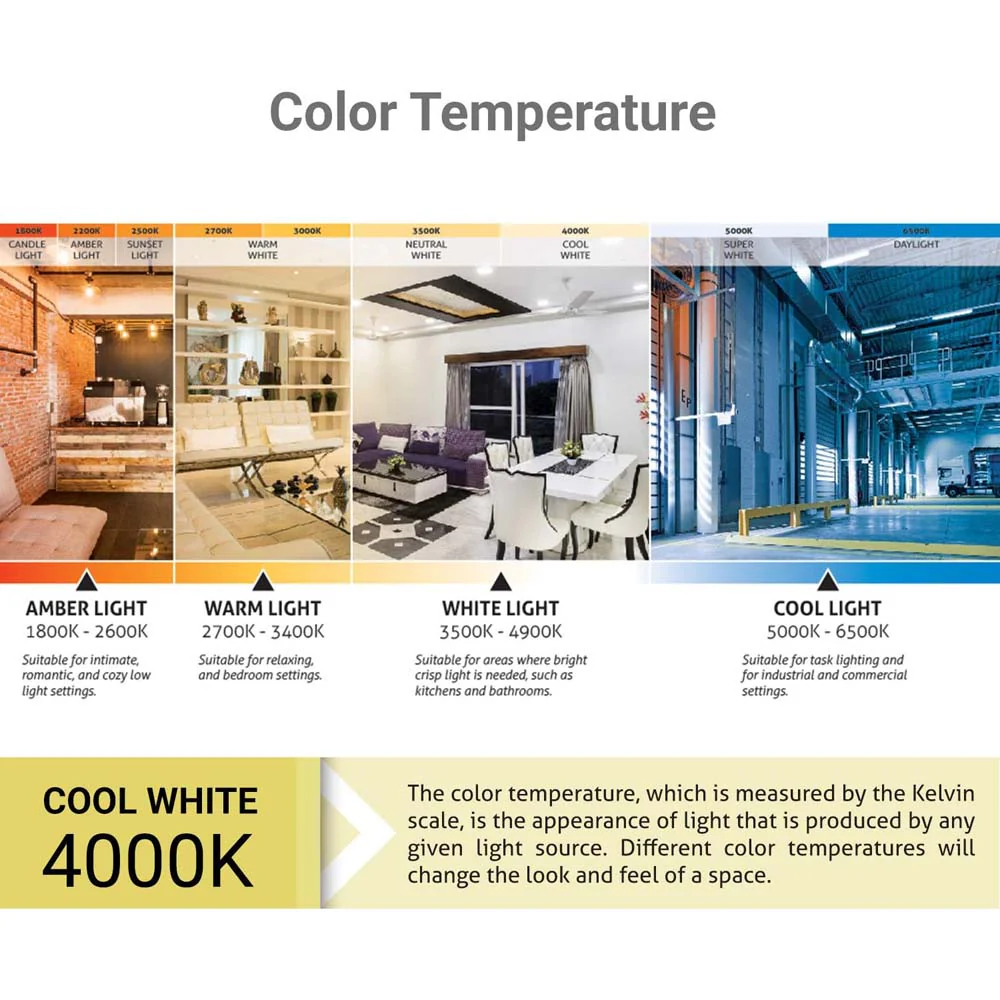

Color Temperature Kelvin	4000K
Color	Cool White
Beam Angle	120 deg

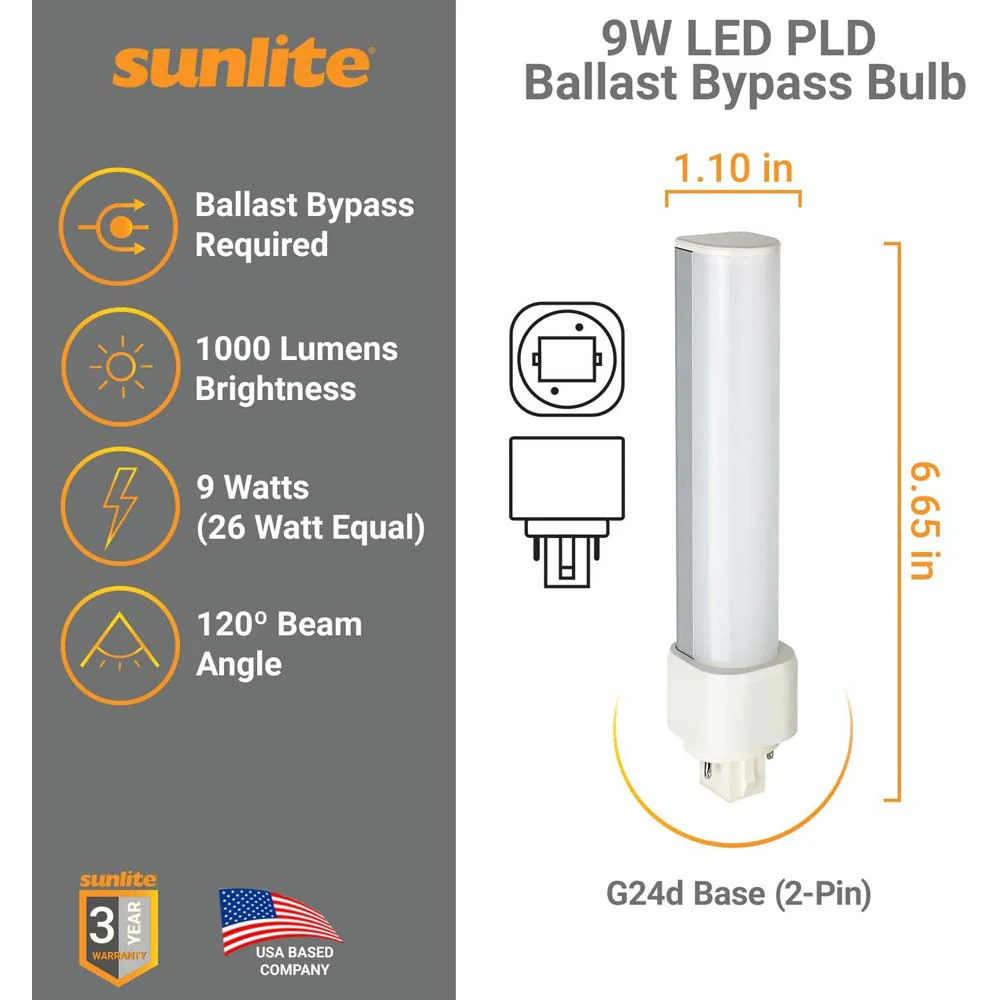

Product Dimensions
MOL	6.65
MOD	1.10
Weight	0.100
Product Data
Safety Rating	UL Listed - Damp Location
UPC	653703882994
Abbreviation	PLD/LED/BP/9W/40K
Warranty	5 Years Limited

Manual:

88299-SU Data Sheet
