Sylvania 60W LED Slim Wall Pack Bronze 4000K Photocontrol - 175w equivalent

Sylvania 60W LED Slim Wall Pack Bronze 4000K Photocontrol - 175w

Features
- Two-piece cast aluminum alloy housing with powder coat paint finish and a glass lens
- Cutoff distribution with a flat tempered glass lens
- Operating Temperature: -40°F to +104°F (-40°C to +40°C)
- Listings: cULus listed to UL1598 standards for wet locations
- Environmentally preferable LED alternatives to traditional HID or Incandescent luminaires
- Offers up to 87% in energy savings
- Ideal for illuminating building exteriors, outdoor corridors, walkways, and stairwells
- Aesthetically pleasing slim design
- Available with optional photo control
- 5 Year Limited Warranty

Manufacturer	Sylvania
NAED	74206
UPC	046135742064
Abbreviation	SLMWPK1A/060120740/CO/BZ/P
Color Rendering Index (CRI)	>70
Color Temperature/CCT (K)	4000
Connectors	Wire nuts

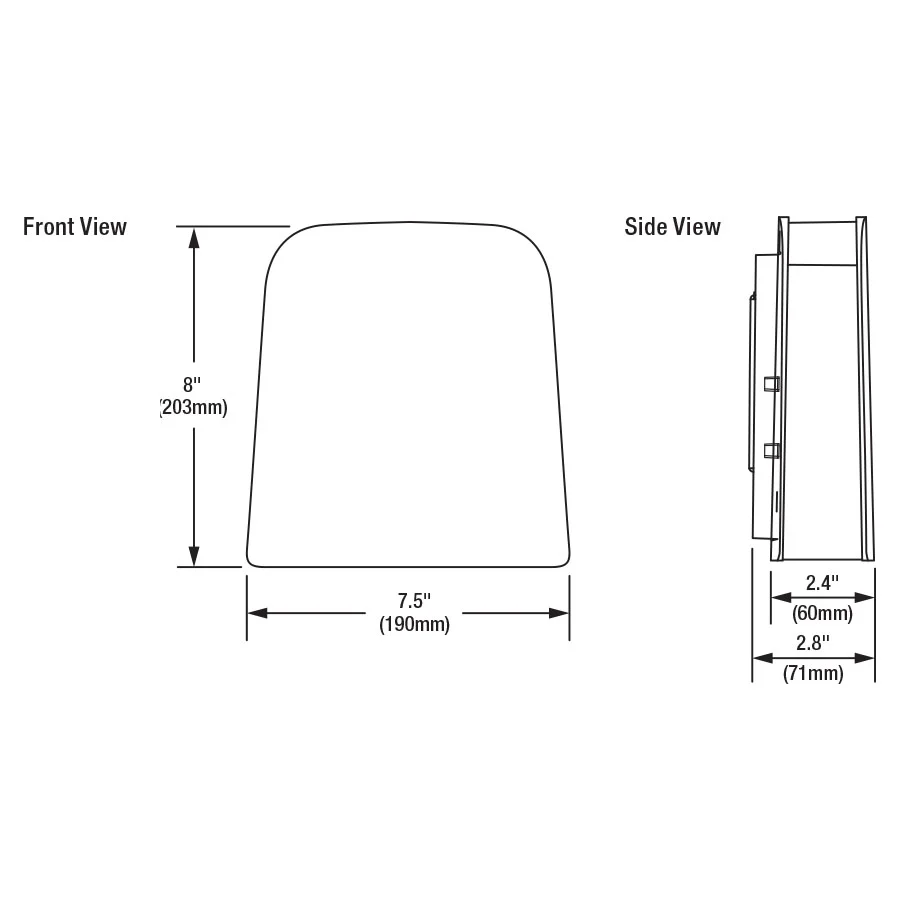

Dimensions	7.5x2.8x8
Efficacy (LPW)	60
Energy Star Rated	No
Housing	Aluminum
Lumens (lm)	5500
Luminaire Finish	Bronze
Luminaire Type	Wall pack
Maximum Operating Temperature-Celsius	40
Maximum Operating Temperature-Fahrenheit	104
Minimum Operating Temperature - Celsius	-40
Minimum Operating Temp - Fahrenheit	-40
Mounting	Surface
Power Factor	≥0.90
Power Input	60
Primary Lamp Type	COB
Rated Life (hr)	125000
Total Harmonic Distortion (THD)	≤ 20 %
Voltage (V)	120.00
Warranty	5 years
Wattage (W)	60.00
Weight (pds)	6
Certification Listing	cULus, FCC, RoHS, DLC

Manual:

Sylvania 74206 Data Sheet
Installation Instructions Sheet
Fixture Compatibility List
Design Sheet
