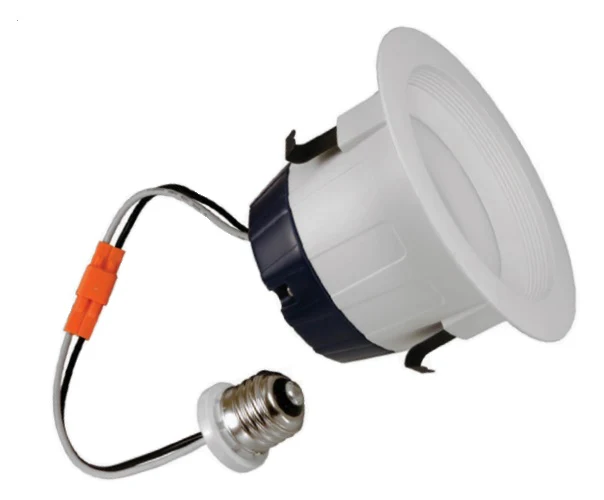

Sylvania Ultra RT4 4 in. 9W 2700K Warm White Recessed Downlight Kit - 50w equiv.

The SYLVANIA ULTRA RT4 unit is a four-inch LED recessed downlight kit creating high performing white light which is optimized for new construction and retrofit applications. Installation is done quickly and easily in most standard four-inch Insulated Ceiling (IC), Airtight (AT) and non-IC housings. The adjustable gimbal features a smooth travel from nadir to a 35 tilt, making it suitable for slanted ceilings and wall wash. The gimbals friction blade design allows the downlight to be installed in any position within the housing aperture and the 360 horizontal rotation capability of the gimbal head offers easy aiming and adjustment.

Dimming
The SYLVANIA ULTRA RT Series recessed downlight kits are dimmable to 10% with standard 120V electronic low voltage dimmers (recommended), incandescent or magnetic low voltage dimmers. In some cases, standard incandescent dimmers require a minimum load of typically >40 watts on the circuit for full range dimming performance (four fixtures). For dimming with digital (smart) multi-location dimmers or when dimming fewer than four LED kits, Electronic Low Voltage (ELV) dimmers are required (some ELV dimmers need a neutral connection in the wallbox).

Applications
- Healthcare
- Hospitality
- Office
- Property Management
- Residential
- Retail

Features & Benefits
- Lumen package: 600 lumens @ 9 watts
- Replacement for 50W R20 incandescent lamps
- Fits into most 4" recessed downlight fixtures
- CCT: 2700K
- Beam angle: 80 degrees
- CRI: Up to 90
- Dimmable down to 10%
- 50,000 hour life
- Suitable for indoor and outdoor dry, damp and wet locations
- Reduces energy consumption by up to 82% savings
- 120V input voltage
- Lasts up to 25 times longer than incandescent and halogen lamps
- No warm-up time, instant-on with full light output and stable lamp to lamp color
- Meets California Title 24 fixture requirements for high efficacy luminaire
- Integrated white trim and white baffle reflector, medium base socket adaptor included for direct replacement

Manual:

Sylvania 74285 Data Sheet
