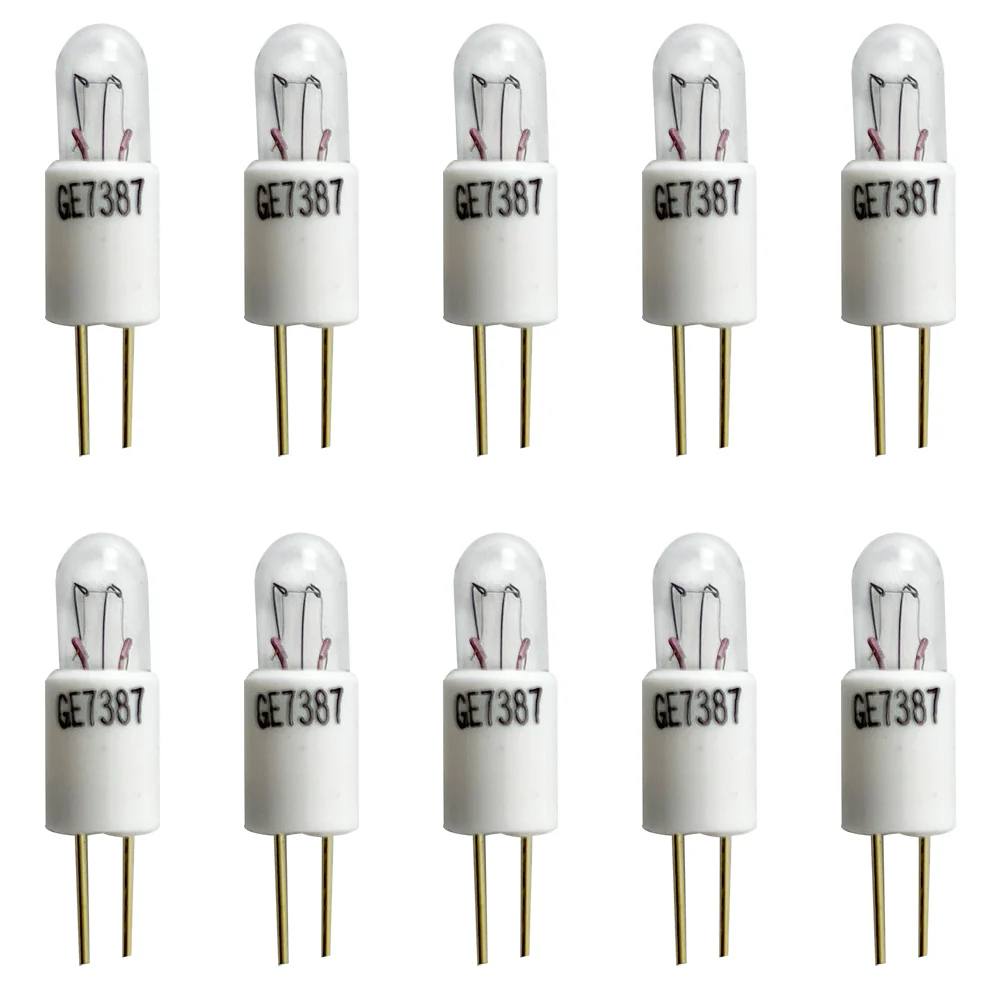

10Pk - GE 7387 - 28926 1w 28v T1.75 M-23 Bi-Pin Base Low Voltage Miniature Bulb

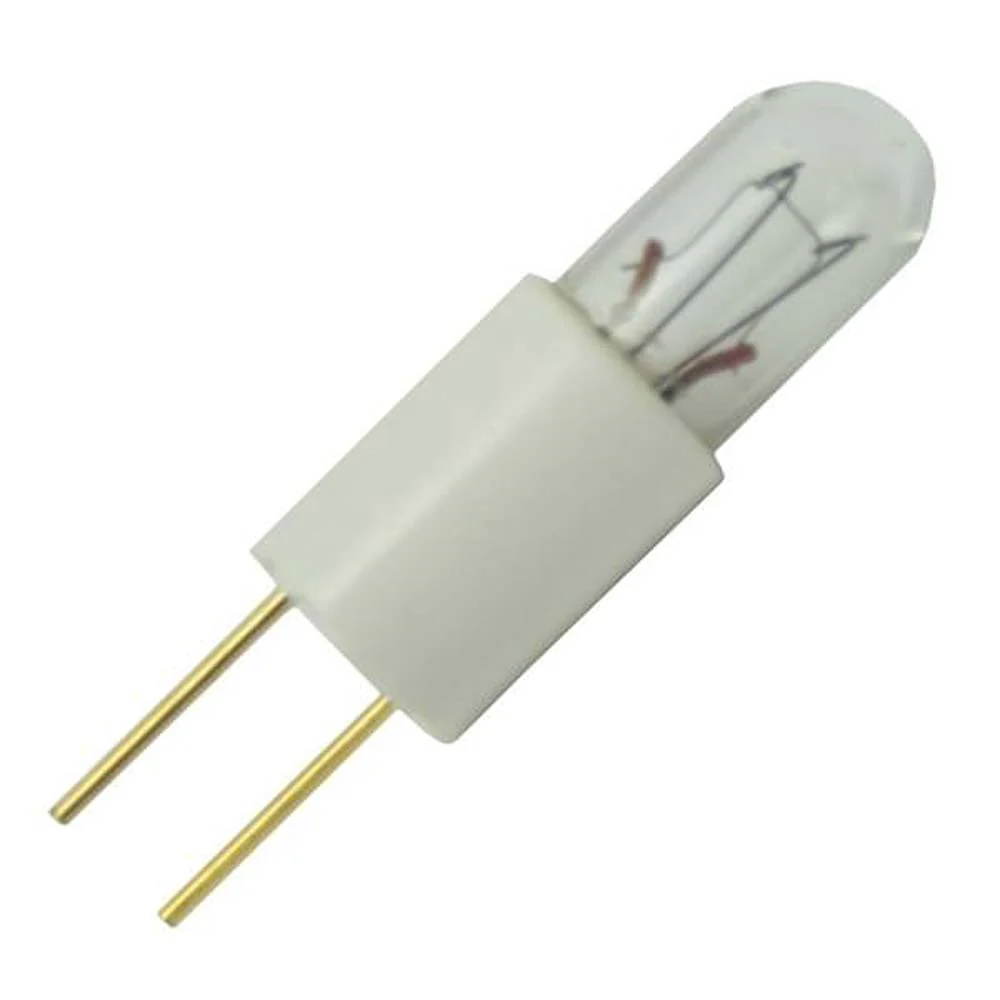

GE 7387 - 28926 1w 28v T1.75 M-23 Bi-Pin Base Low Voltage Miniature Bulb

Features:
- Base Type: Pin/Plug-In
- Base: M-23 (Bi-Pin)
- Lumen per Watt: 4, Rated Life: 7000 hrs

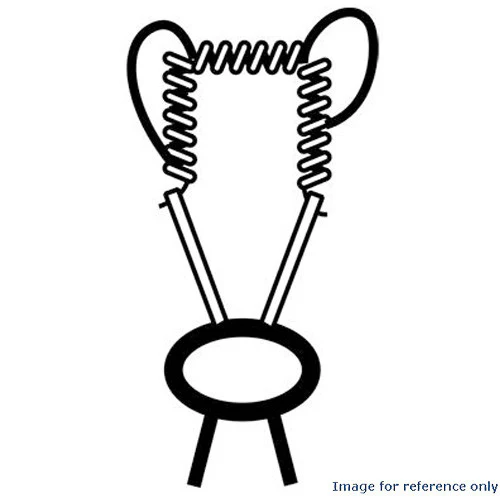

- Filament: C-2F, Bulb Shape: T1.75
- Voltage: 28, Wattage: 1

- MOL: 0.85in
- Diameter: 0.22in
Part Numbers:
- 40926
- CM7387
- 00250700
- 2-Pin
- 384350
- GE7387
- Fluke 343A
- NSN
- GNSN
- 6240-00-555-6347
- DLA400-85-F-2122
- S7387
- GI7387
- Wamco 11-10956
- AML 11-12624

GENERAL CHARACTERISTICS
Base Type	Pin/Plug-In
Base Description	M-23 (Bi-Pin)
Rated Life	7000 hrs
Primary Application	Low Voltage
Bulb Shape	T1.75
ELECTRICAL CHARACTERISTICS
Wattage	1
PHOTOMETRIC CHARACTERISTICS
Mean Spherical Candlepower	0.300 cd
Lumen per Watt	4
DIMENSIONS
Diameter	0.21 in
Light Center Length (LCL)	0.5 in
MOL	0.61 in
PACKAGING INFORMATION
Package Quantity	50
UPC	043168289269
Length	0.01 in
Width	0.01 in
Height	0.01 in
Gross Weight	0.2 Ib

Manual:

GE 28926 Data Sheet
