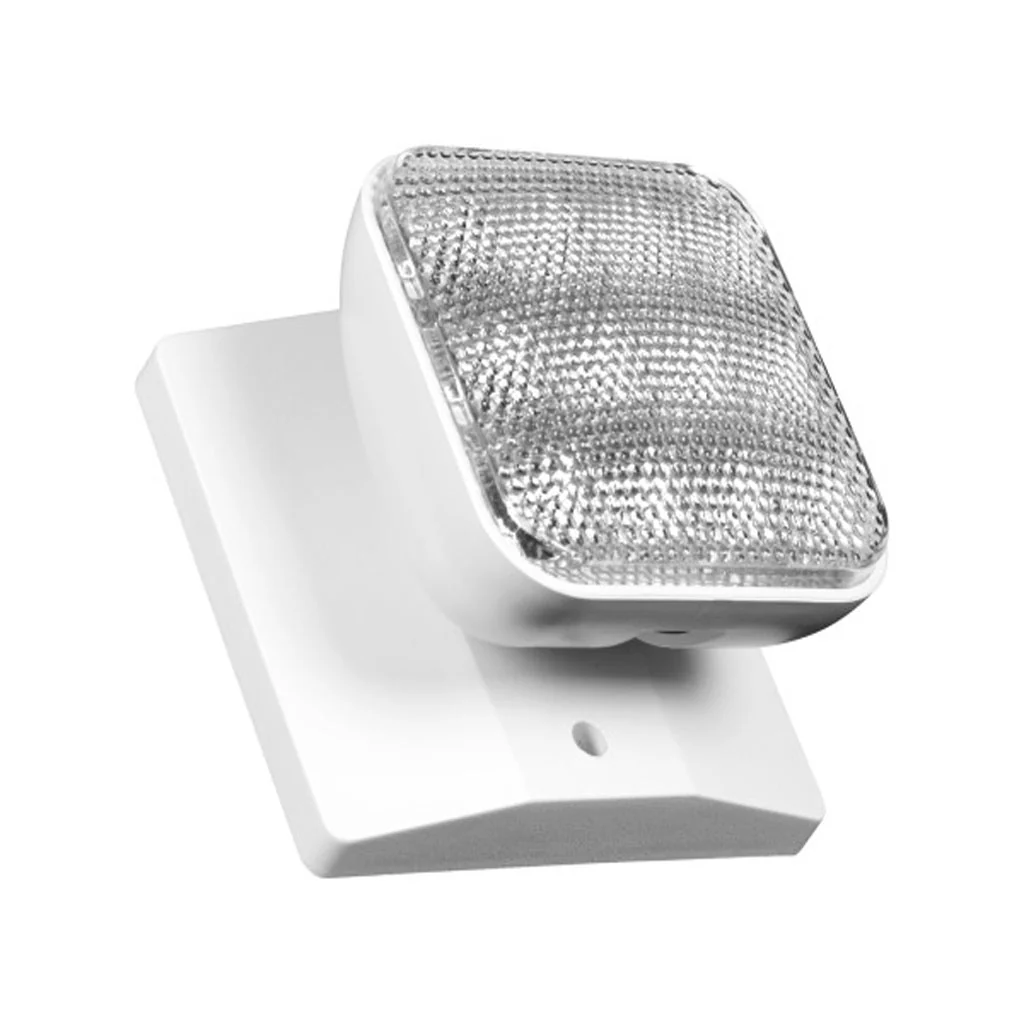

Nicor ERH Series Emergency LED Remote Light Fixture Single Head
Description
The ERH Series LED Remote Lighting Fixtures are designed to work with NICOR remote-capable LED exit signs and emergency lighting units (3.6VDC). This sleek, contemporary design offers fully adjustable heads that complement any environment. Easily hardwire (daisy-chain) directly to remote-capable emergency backup fixtures. Not designed for line voltage hardwire (requires remote-capable emergency fixture). Available in single or double head options. Protected by NICOR 1-Year Limited Warranty.
Features:- Injection-molded thermoplastic ABS housing
- UL-94V-0 flame retardant
- Uses only 1.2W of energy
- Remote functionality emergency run time
- 3.6VDC remote input voltage
- Produces 192 Lumens of bright light at 6600K (Daylight)
- Adjustable LED head rotates 330and tilts up to 45 deg
- Prismatic lens distributes light evenly for optimal coverage
- Easy installation directly into junction box
- UL and cUL Listed
- Protected by NICOR 1-year limited warranty
Specs

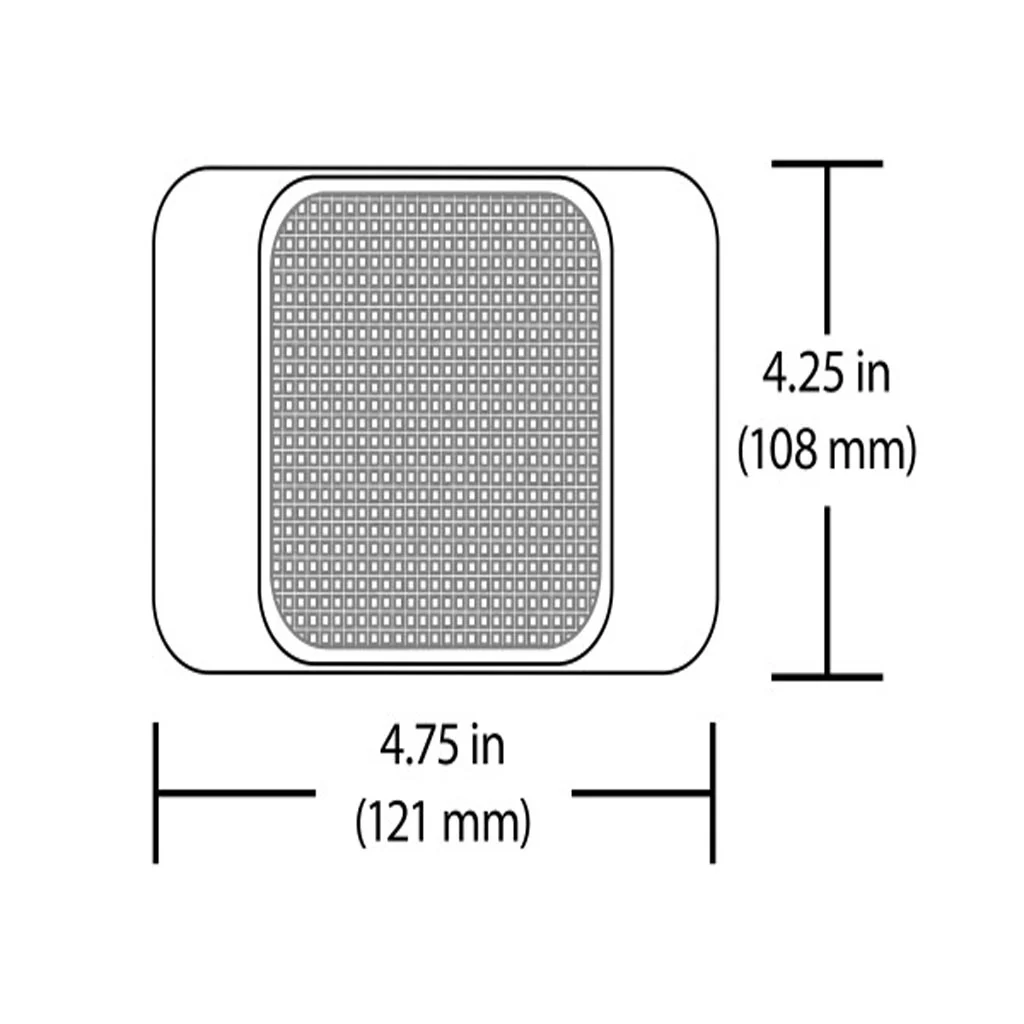

| Size | 4.75 |
| Product Color | White |
| Finish | Standard |
| Light Source | LED |
| Wattage | 1.2 |
| Lumen | 191.1 |
| CRI | 82 |
| Listings/Certifications | UL Listed, cUL Listed, UL-94-V-0 Flame Retardant, FCC Class A, Dry-Location |
| Warranty | 1 Year Limited |
