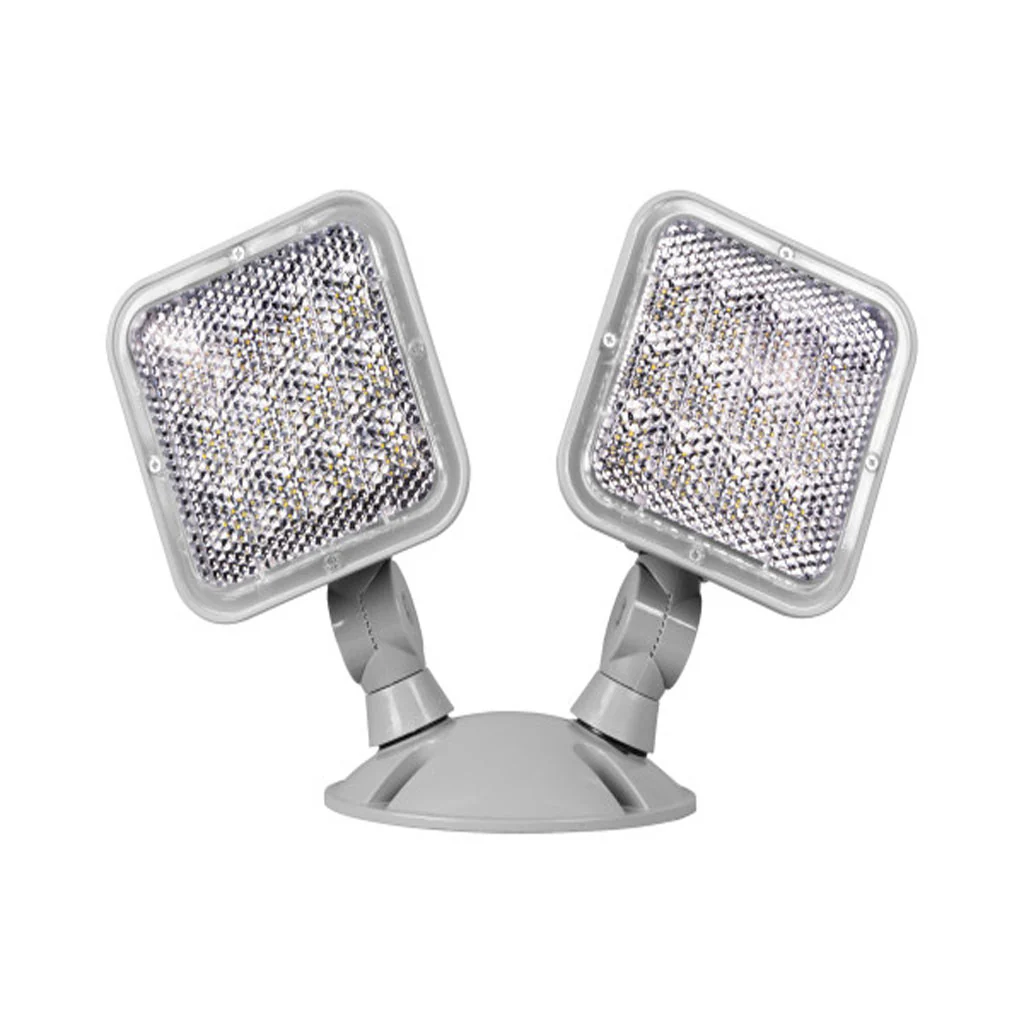

Nicor Weather Resistant Emergency LED Remote Light Fixture Double Head

The ERHWP Series LED Outdoor Remote Lighting Fixtures are designed to work with NICOR remote-capable LED exit signs and emergency lighting units (3.6VDC). This contemporary weather-resistant design offers fully adjustable heads that complement any environment. Easily hardwire (daisy-chain) directly to remote-capable emergency backup fixtures. Not designed for line voltage hardwire (requires remote-capable emergency fixture). Installs easily and directly to junction box. Available in single or double head options. Protected by NICOR 1-Year Limited Warranty.

Features:
- Injection molded thermoplastic ABS housing
- Powder coated die-cast aluminum base
- UL-94V-0 flame retardant
- Uses only 2.3W of energy
- Remote functionality emergency run time
- 3.6VDC remote input voltage
- Produces 187 Lumens of bright light at 6400K (Daylight)
- Adjustable LED head rotates 360and tilts up to 70 deg
- Prismatic lens distributes light evenly for optimal coverage
- Easy installation directly into junction box
- UL and cUL Listed
- Protected by NICOR 1-year limited warranty

Size	6.75
Product Color	Gray
Finish	Powder Coat
Light Source	LED
Wattage	2.6
Lumen	187.4
CRI	83
Listings/Certifications	UL Listed, cUL Listed, UL-94-V-0 Flame Retardant, FCC Class A, Wet-Location
Warranty	1 Year Limited

Manual:

ERHWP2GR Data Sheet
