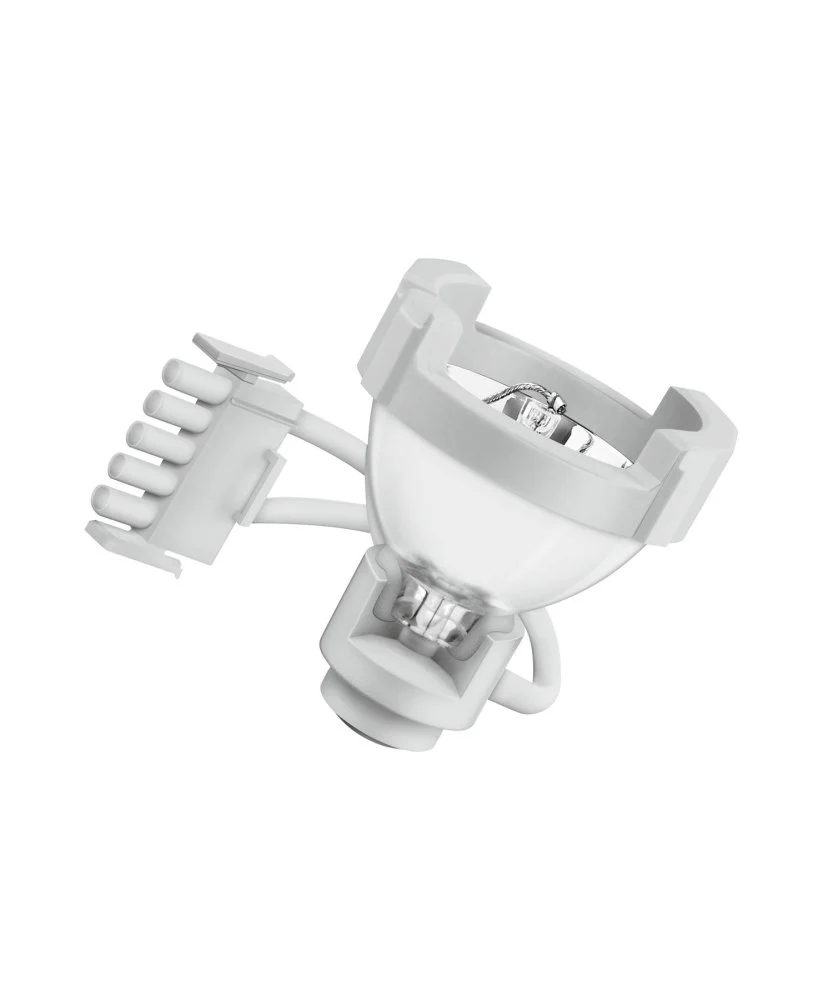

Osram 69190 XBO R 101W/45C OFR 101W short arc
Description
Osram 69190 XBO R 101W/45C OFR 101W short arc Mercury Short
Arc Discharge Lamps are intense point sources that provide a broad spectrum
through the visible and ultraviolet range. The XBO R 101W/45C OFR 101W lamps
are optimal sources for fiber illumination devices for Medical, Scientific,
and various Industrial areas. The broad spectrum makes these lamps ideal
for microscopy applications.
Product features and benefits
Product features and benefits
- High luminance / radiance with intense point source
- Broad, continuous spectral distribution
- High color rendering > 95
- High arc stability
- DC operation
- Endoscopy
- Microscopy
- Surgical Headlamps
- Fiber Illumination
- Solar Simulation
- Imaging & scanning
Specs
| Abbreviation Name | XBO R 101W/45C OFR |
| Application | Medical and industrial fiber optics |
| Average Rated Life (hr) | 500 |
| Base | Special |
| Bulb | KO176 |
| Class | C (gas) |
| Color Temperature (K) | 6000 |
| Current (A) | 7.0 |
| Diameter d (in) | 2.520 in |
| Diameter d (mm) | 67 |
| Family Brand Name | XBO |
| Hot Restart | Yes |
| Lamp Finish | Clear |
| Length l1 (mm) | 83 |
| Length l1 max. (mm) | 83 |
| Maximum Base Temperature °C | 230 C |
| Maximum Overall Length - MOL (mm) | 83 |
| Nominal Voltage (V) | 85 |
| Nominal Wattage (W) | 101 |
| Operating Position | p 15 |
| Type of Current | DC |
| Working Distance a (mm) | 45 |
| CA Prop 65 | Yes |
| CA Prop 65 Material | Mercury |
